Traces provide detailed visibility into AI interactions, including timestamps, execution IDs, and durations. They support debugging, system analysis, and graph monitoring.

​
Key Features

  • Performance Analysis: Measure response times and system latency to identify bottlenecks.
  • Debugging & Troubleshooting: Investigate errors and refine AI graphs using trace data.
  • [Coming Soon] Reusable Data: Logged traces can be used to generate evaluation datasets in automated and human review workflows.

​
Get Started with Traces

​
Capturing Traces

To capture traces, you’ll first need to ensure telemetry is enabled (it should be on by default). Follow the SDK specific instructions:
  • Node.js
  • Unreal
  • C++
Tracing is enabled by default. Just set your API key:
export INWORLD_API_KEY=your-api-key
Optional: Custom configurationDevelopers can customize telemetry behavior for better monitoring and performance:
import { telemetry, LogLevel, ExporterType } from '@inworld/runtime';

telemetry.init({
  // Required
  apiKey: 'your-api-key',

  // Application identification (helps filter traces in Portal)
  appName: 'my-chat-app',           // Appears as service.name in traces
  appVersion: '2.1.0',             // Track different deployments

  // Custom endpoint (optional)
  endpoint: 'https://custom-telemetry.example.com',


  // Tracing configuration
  tracer: {
    samplingRate: 0.1             // Sample 10% of trace sessions (default: 1.0 = 100%)
  },

  // Export destination
  exporterType: ExporterType.REMOTE // Send data to Inworld Portal (default remote)
});
Why customize these settings?
  • appName/appVersion: Identify your app in Portal when monitoring multiple services
  • tracer.samplingRate: Reduce overhead in high-traffic production (default: 1.0 = capture all traces)
    • 0.1 = capture 10% of trace sessions (complete execution flows)
    • Each captured trace still shows the full execution path
    • Logs are NOT affected by trace sampling - they’re captured based on logger.level setting regardless of whether the trace is sampled
  • exporterType: Control where telemetry data is sent
    • REMOTE (default): Send to Portal via HTTPS for monitoring and analysis
    • LOCAL: Output to console/terminal for development debugging (no Portal)
To disable telemetry completely:If you do not want to capture telemetry, you can disable it by:Environment variable:
export DISABLE_TELEMETRY=true
# or alternatively
export DISABLE_TELEMETRY=1
Programmatically in code:
// Option 1: Set environment variable before importing the framework
// CORRECT - Set before any imports
process.env.DISABLE_TELEMETRY = 'true';
import { telemetry } from '@inworld/runtime'; // telemetry won't initialize

// WRONG - Set after import
import { telemetry } from '@inworld/runtime'; // telemetry already initialized!
process.env.DISABLE_TELEMETRY = 'true'; // too late

// Option 2: Shutdown telemetry after automatic initialization
import { telemetry } from '@inworld/runtime';
telemetry.shutdown();

​

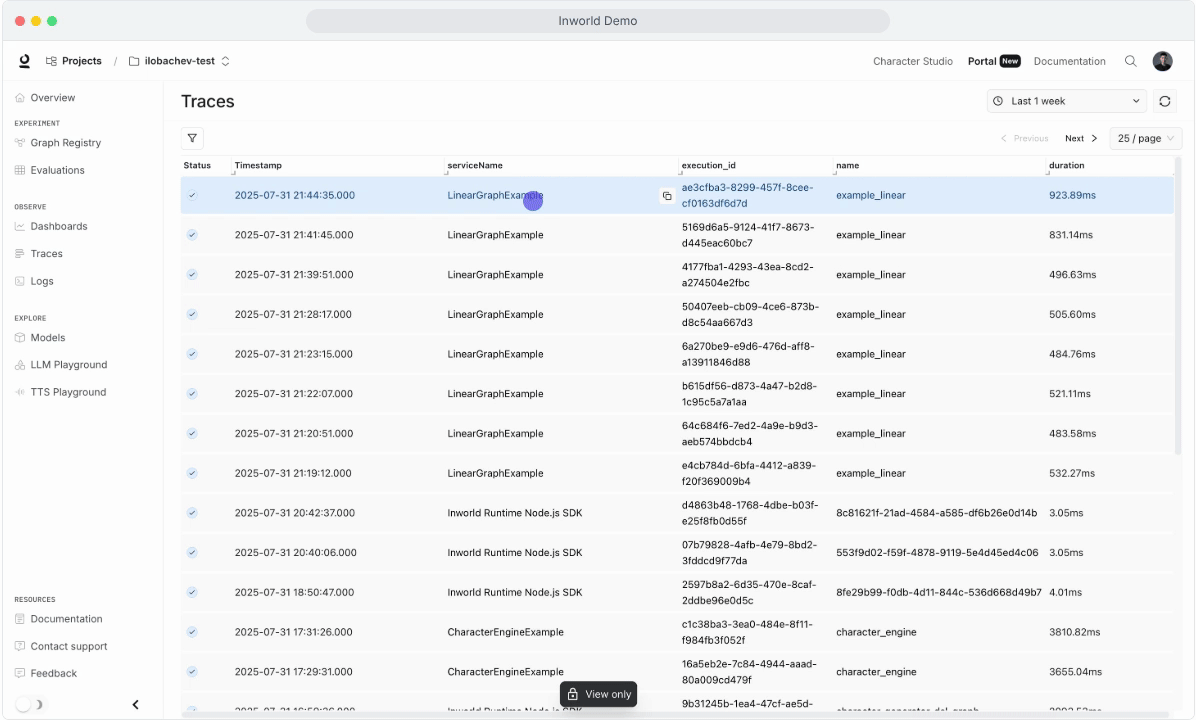

Viewing Traces

To view your Traces, navigate to the Traces tab in Portal.
  • Select a timeframe to view relevant traces.
  • Filter by Name, Trace ID, Span ID, Application Name, or Status Code.
  • Click a trace to view:
    • Execution ID
    • Execution latency
    • Span latencies and details
  • Click a span to see:
    • Span ID
    • Tags
    • Events
If you want to deep dive more into a specific trace, you can also look up any logs associated with that trace, by navigating to the Logs tab.
  • Use the search bar to find logs by Trace ID or Span ID.
  • Examine logs for additional context on the particular trace or span.

​
Trace Metadata Definitions

Field NameDescriptionDefined by
Trace Level Fields
Execution IDUnique ID of one graph execution/ one traceRuntime/ Developer can override
DurationDuration of the trace execution in millisecondsRuntime
Graph IDUnique ID of the executing graphDeveloper
Graph VariantGraph variant being executedRuntime
App: NameName of the application or serviceDeveloper
App: VersionApplication versionDeveloper
App Instance IDAuto-generated unique instance identifierRuntime
User Context: Targeting_keyKey to ensure users experience the same variant across sessionsDeveloper
User Context: *Custom user attributes (e.g., user_context.age, user_context.user_id)Developer
Span Level Fields
Span IDUnique span identifierRuntime
Span NameName of the span. Ex: Graph ID (for graph spans) or Node ID (for node spans)Runtime
TimestampWhen the span startedRuntime
StatusFinal status as string: “Unset”, “Error”, “Ok”Runtime
ServiceEither “workflows.Graph” or “workflows.Node”Runtime
MethodEither “execute” or “process”Runtime
Node IDID of the specific node being executedRuntime
InputInput to the graph/node/serviceRuntime
OutputOutput from the graph/node/serviceRuntime

​
Best Practices

  • Enable Tracing in Development: Ensure trace logging is active in your development setup for early diagnostics.
  • Use Filters for Faster Debugging: Apply filters like Execution ID and service name to quickly find issues.
  • Monitor Performance Trends: Track long-term trace data to uncover inefficiencies or anomalies.
  • Optimize execution: Dive deep into each trace execution to optimize each span

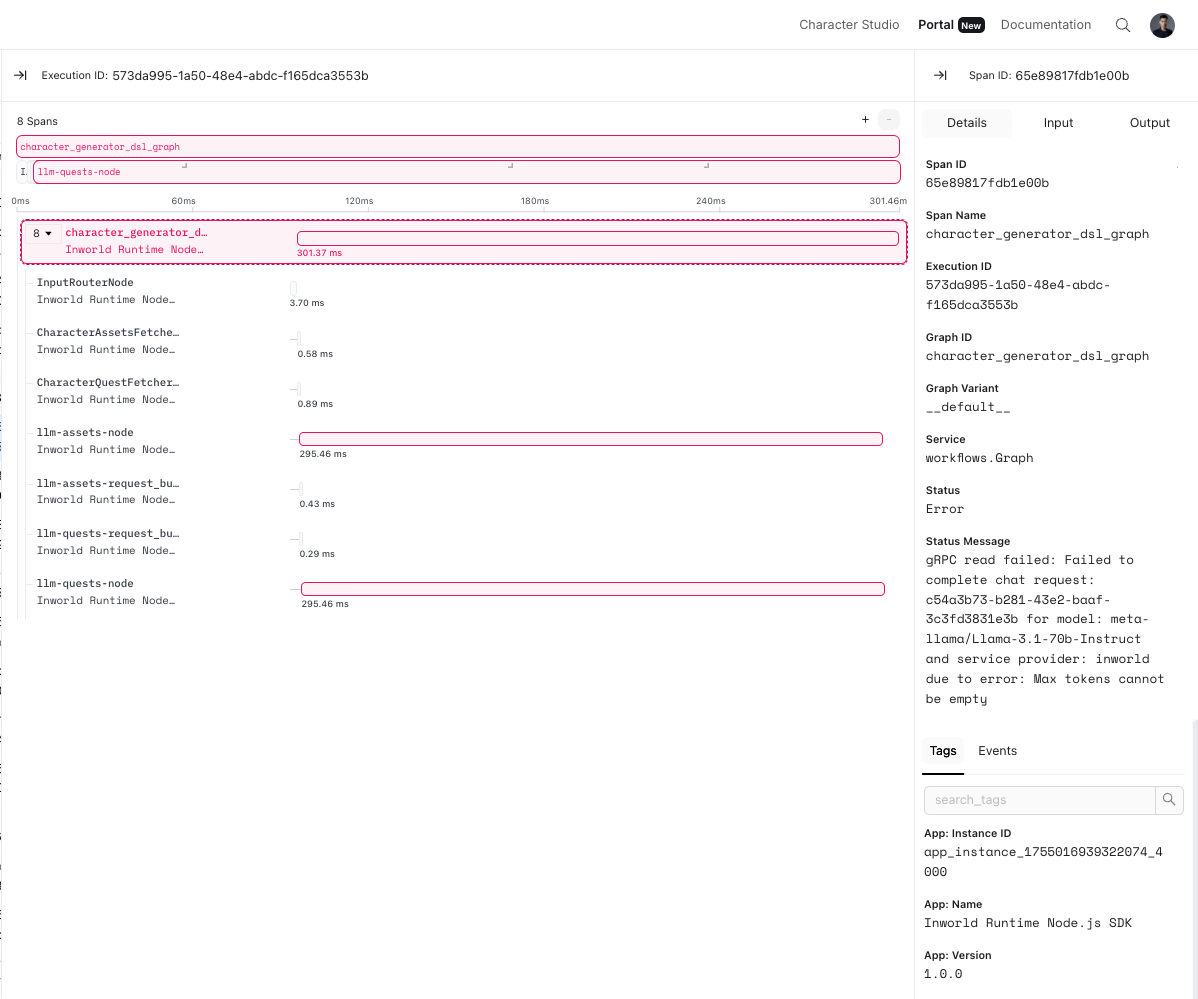

    • Error Highlighting: Spans with errors appear with red borders for immediate identification
    • Error Propagation: Dotted outlines indicate parent spans containing child spans with errors

​
When Should I Use Traces vs Logs?

As opposed to logs, which capture details about a specific event, traces show the flow of an entire execution. Below is an overview of some key differences:
AspectLogsTraces
PurposeCaptures discrete events (errors, warnings, info)Capture end-to-end execution flows
ScopeCapture specific moments in timeCapture relationships between nodes
GranularityOften capture detailed, low-level system information, including errors or performance metricsShow the high-level flow of a request across nodes, including inputs/output
Use CaseDebugging, monitoring, auditing, performance tracking, and error reportingEnd-to-end execution tracking, identifying bottlenecks, tracing dependencies
Use traces when you need to:
  • Visualize the complete flow of a request through your system
  • Identify performance bottlenecks across multiple components
  • Understand dependencies between different components
  • Identify where failures are happening across the system (e.g., was knowledge not retrieved or did the model not utilize it?)

​
Next Steps

Use trace insights to continue to optimize your AI graph performance!

Create Dashboards

Monitor your key metrics.

Launch an Experiment

Learn how to run an experiment to optimize your metrics.

Quickstart

Learn how to build a simple chat experience using the Node.js SDK.
