Get real-time visibility into your application health. Track performance, resource usage, and system health through comprehensive dashboards and detailed data views.

Get Started with Dashboards

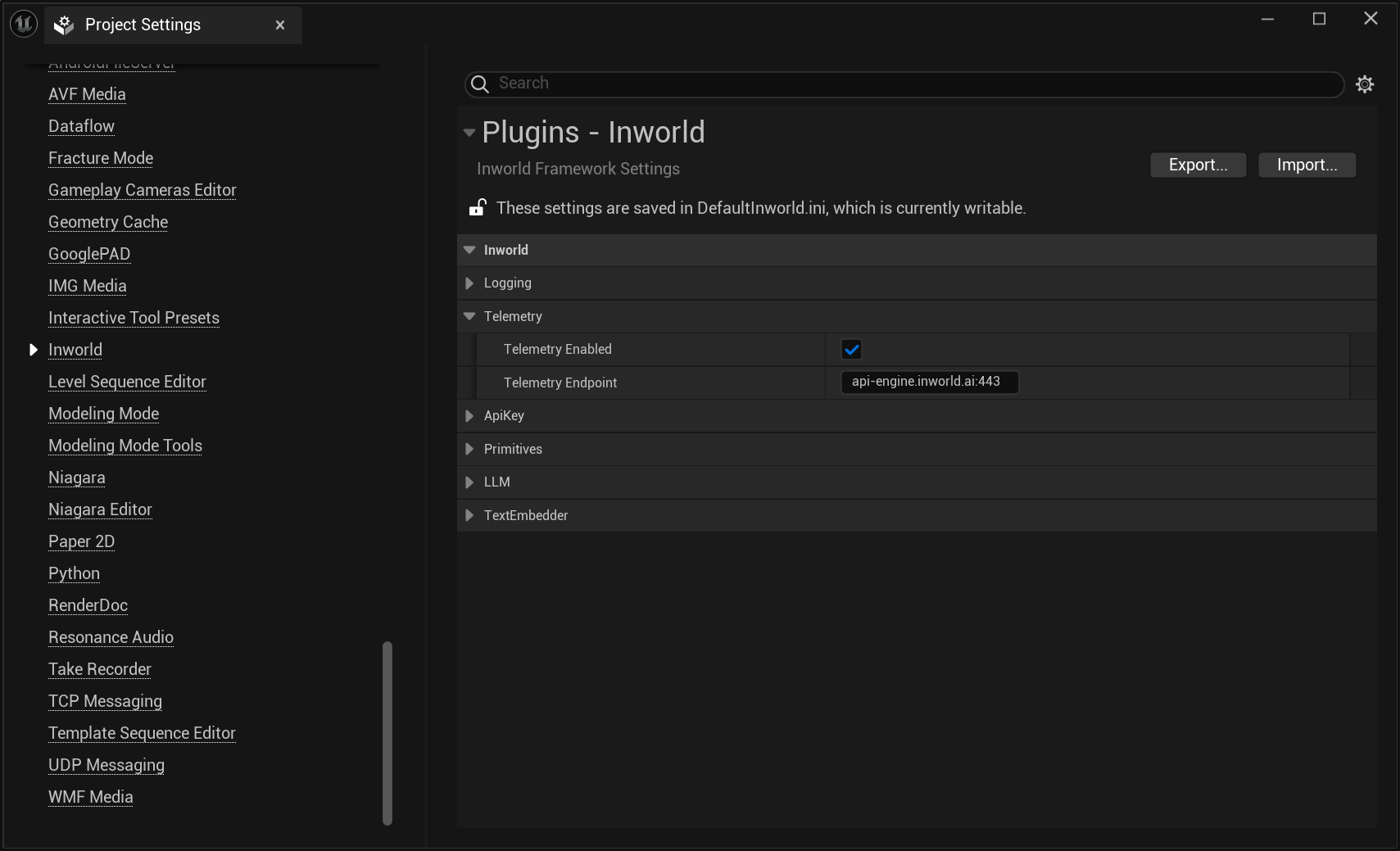

Enable Metrics Collection

To start using dashboards, you’ll need to configure telemetry in your application:

Node.js
Unreal
C++

Add the following code snippet to your application:

import { telemetry } from '@inworld/runtime';

// Initialize telemetry
telemetry.init({
  apiKey: process.env.INWORLD_API_KEY,
  appName: 'MyApplication',
  appVersion: '1.0.0',
});

Once telemetry has been configured, metrics will be automatically collected and sent to Portal.

View Default Dashboard

Every workspace comes with a pre-configured default dashboard containing 8 essential metrics. These 8 metrics are automatically calculated when you execute your graphs.

Panel	What it Shows
Graph Executions Total	Count of graph executions
Graph Executions Errors Total	Count of total graph execution errors
P50 / P99 Graph Execution Latency	Percentile latency for the full graph execution
Node Executions Total	Count of node executions across all nodes
Node Executions Errors Total	Count of total node execution errors across all nodes
P50 / P99 Node Execution Latency	Percentile latency for all node executions
LLM Node: Output Tokens Rate	Number of LLM output tokens per unit of time
P50 / P99 LLM Time to First Token Latency	Percentile latency for time to first token

Building Custom Panels

Ready to create your own custom panels? Here’s the step-by-step process:

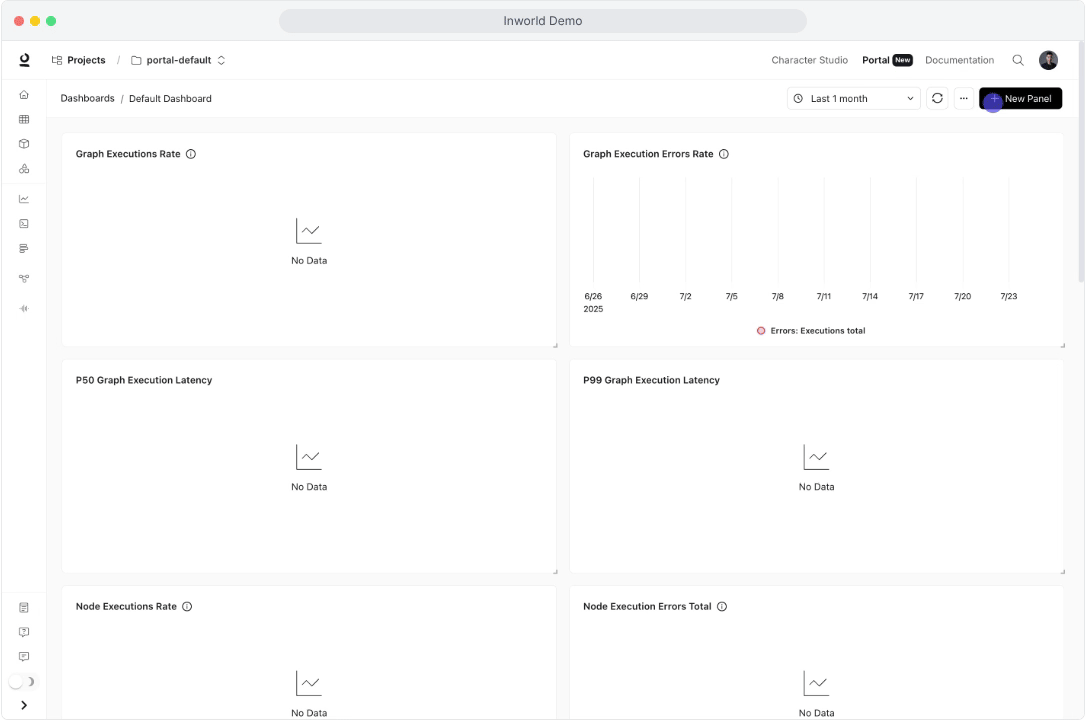

Create Panel

Click on the dashboard you want to view
Click New Panel on the top right corner
Select a chart type: Time Series, Number, Table, Bar, or Pie Chart

Build Your Query

The visual query builder makes it simple - just choose a metric and an aggregator.

Select a metric: What you want to measure (e.g., framework_executions_total)
Pick an aggregator: How to calculate values (Count, Average, P99, etc.)
Add filters (optional): Use WHERE conditions, group by dimensions, or set time aggregation
Click Stage & Run Query

End-to-End Example

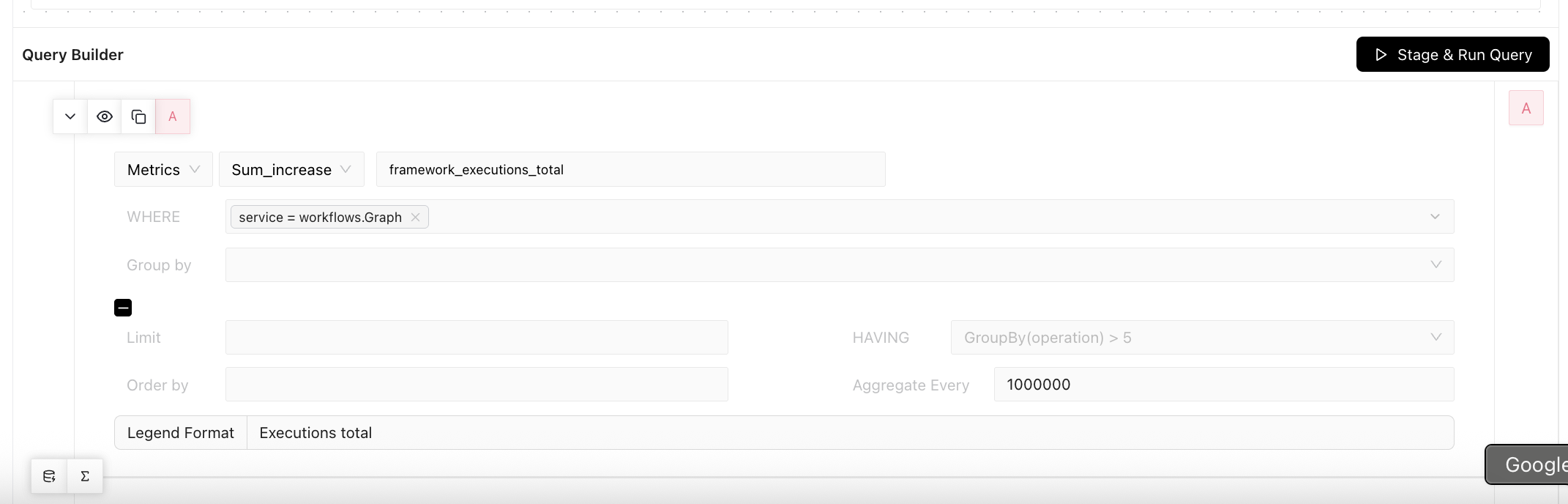

Query Builder Guide

Essential Fields

The core fields you’ll use for most charts:

Field	What it Does	Example
Metric Name	The specific metric to display	`framework_executions_total`
Aggregate Operator	How to calculate values	Count, Avg, P99, Sum
WHERE	Filter your data	`graph_id = "abc"`
Group by	Split data into separate lines	By service name, endpoint

Advanced Fields

For more complex queries and customization:

Field	What it Does	Example
Limit	Maximum number of groups to show	10 (top 10 services)
HAVING	Filter groups after aggregation	`GroupBy(operation) > 5`
Order by	Sort the results	By value desc, by name
Aggregate Every	Time resolution (seconds)	60 = one point per minute
Legend Format	Customize chart labels	`{{service_name}}`

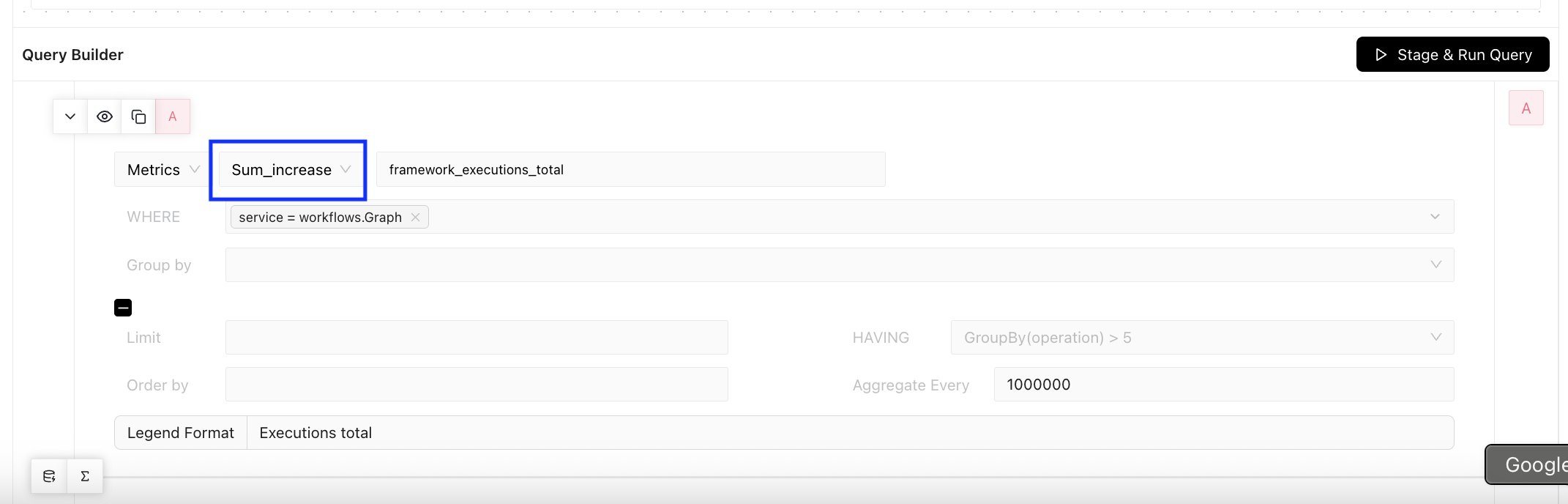

Aggregate Operators

These operators determine how your data is calculated and displayed: Basic Aggregations:

NOOP: No operation - shows raw metric values without aggregation
Count: Number of events or data points
Count Distinct: Number of unique values
Sum: Adds up all values within each time period (e.g., total requests per minute)
Sum_increase: Shows increase in cumulative counters over time (e.g., how much a “total requests” counter grew)
Avg: Average value across all data points
Max: Highest value in the dataset
Min: Lowest value in the dataset

Percentiles:

P50: 50th percentile (median)
P75: 75th percentile (third quartile)
P90: 90th percentile - only 10% of values are above this
P95: 95th percentile - only 5% of values are above this
P99: 99th percentile - only 1% of values are above this

Rate Functions:

Sum_rate: Sum of individual rate calculations (e.g., total requests/sec across all services)
Avg_rate: Average of individual rate calculations
Max_rate: Maximum of individual rate calculations
Min_rate: Minimum of individual rate calculations

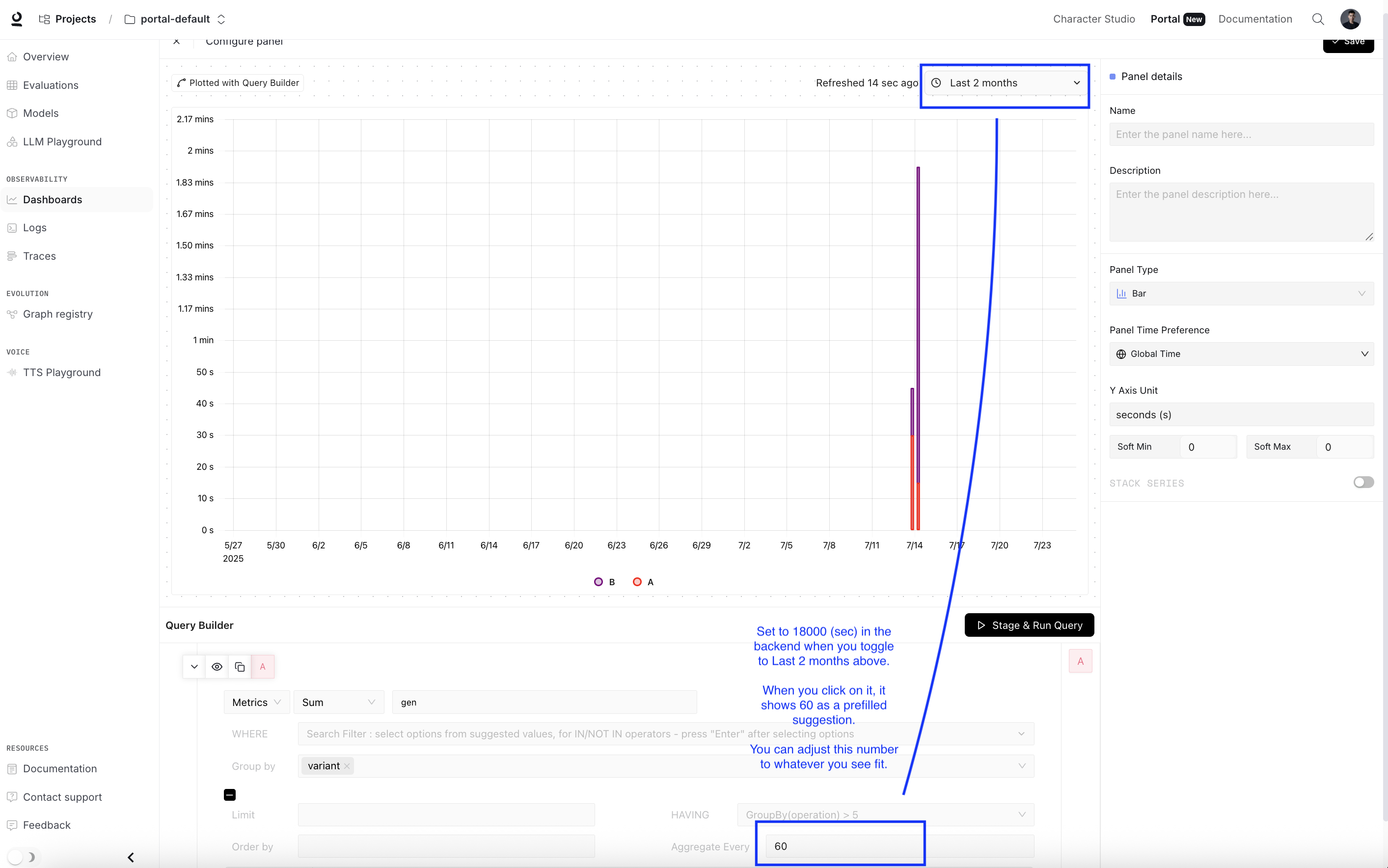

Time Aggregation Settings

Time Range: On the top right of your dashboard - Defines the time scope of your data (e.g., “last 30 minutes”, “last 1 week”) Aggregate Every: In the Query Builder - Defines how your data is grouped over time (every 60 seconds, 300 seconds, etc.) When you change the time range on the dashboard, the Aggregate Every field automatically adjusts to keep charts readable. For example, when you select “last 30 minutes”, the default Aggregate Every is set to 60 seconds. Why this matters:

Longer time ranges → Higher aggregation intervals (fewer data points, smoother charts)
Shorter time ranges → Lower aggregation intervals (more data points, more detail)

Selected Time Range	Aggregate Every (seconds)	Human Readable
30 minutes	60	1 minute
60 minutes	60	1 minute
1 hour	60	1 minute
3 hours	60	1 minute
6 hours	60	1 minute
12 hours	120	2 minutes
1 day	300	5 minutes
3 days	900	15 minutes
1 week	1800	30 minutes
10 days	3600	60 minutes
2 weeks	3600	60 minutes
1 month	9000	2h 30min
2 months	18000	5 hours

When defaults might cause issues: Problem: Too granular (gaps in chart)

When: Sparse data + short time range (e.g., events every 5 minutes but aggregating every 1 minute)
Result: Lots of empty intervals, choppy chart with gaps
Fix: Increase Aggregate Every (e.g., change from 60 to 300 seconds)

Problem: Too coarse (missing detail)

When: Frequent data + long time range (e.g., events every 30 seconds but aggregating every 5 hours)
Result: Important spikes and patterns get smoothed out
Fix: Decrease Aggregate Every (e.g., change from 18000 to 3600 seconds)
