The Character Interaction template demonstrates how to create a simple character interaction using the LLM, TTS, and STT primitives.

​
Run the Template

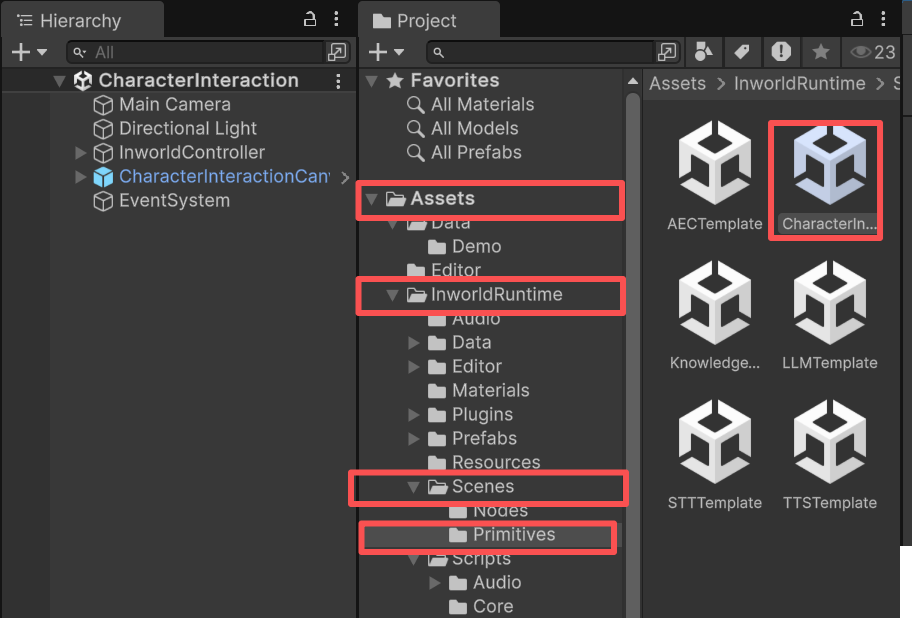

  1. Go to Assets/InworldRuntime/Scenes/Primitives and play the CharacterInteractionTemplate scene. CharPri00
  2. Once loaded, select your preferred character icon and enter the name, role, description, and motivation.
  3. Click Proceed.
  4. Type your message and press Enter or click Send to submit text.
  5. Hold the Record button to record, then release to send the audio.

​
Understanding the Template

​
Structure

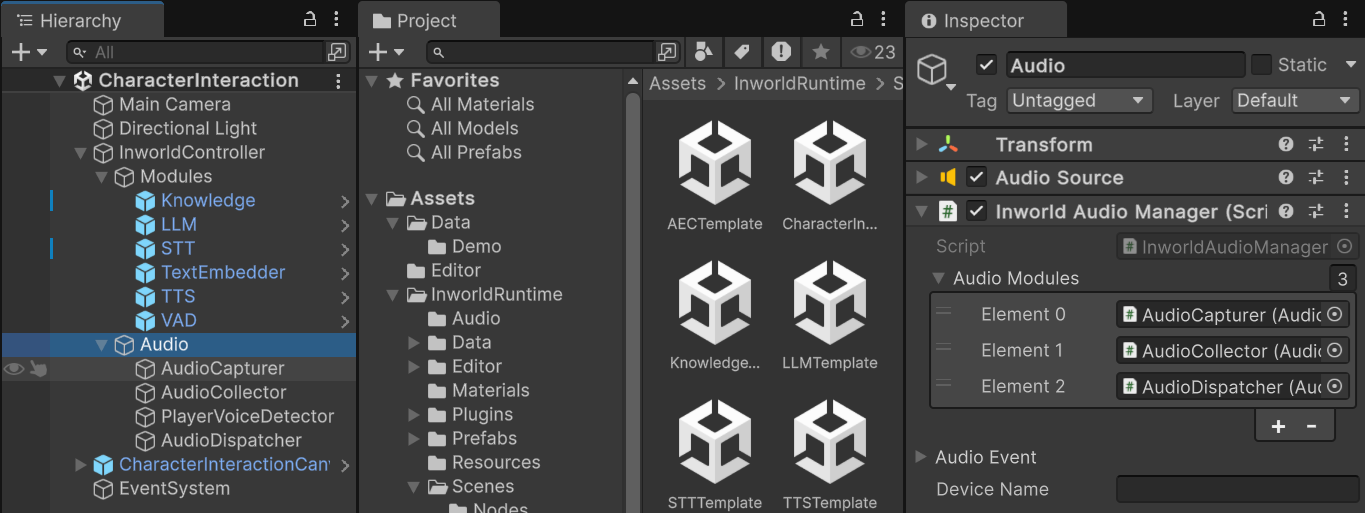

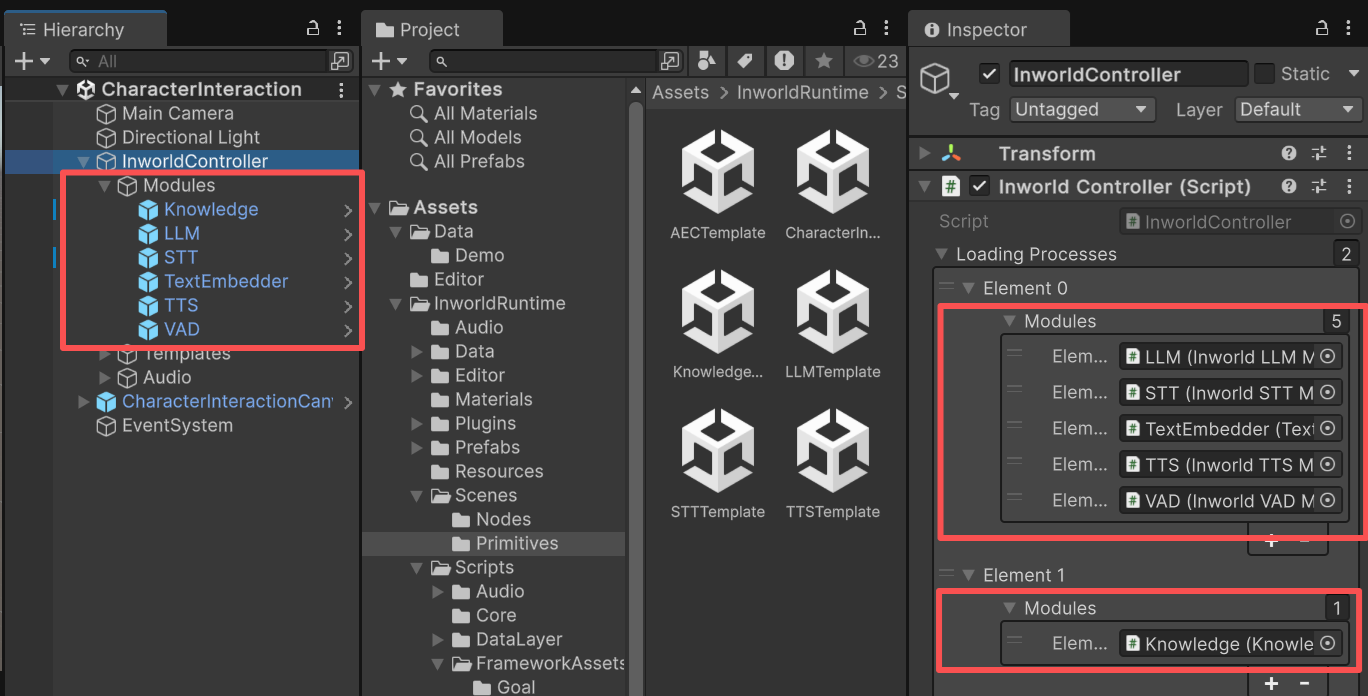

This demo combines all primitives using the API approach. Check InworldController; it contains all primitive modules provided in the Inworld Unity AI Runtime SDK. CharPri01 Its AudioManager also contains all AudioModules showcased in the STT Primitive Demo. CharPri02

​
Character Creation Panel

In this demo, the CharacterCreationPanel holds a ConversationalCharacterData asset. All input and edits modify this data asset. When you press Proceed, the panel invokes its Proceed function, which switches to the next panel, CharacterInteractionPanel, passing the ConversationalCharacterData.
CharacterCreationPanel.cs
public class CharacterCreationPanel : MonoBehaviour
{
    [SerializeField] Toggle m_MaleToggle;
    [SerializeField] Toggle m_FemaleToggle;
    [SerializeField] TMP_Dropdown m_VoiceDropDown;
    [SerializeField] List<string> m_MaleVoices;
    [SerializeField] List<string> m_FemaleVoices;
    [SerializeField] CharacterInteractionPanel m_InteractionPanel;
    ConversationalCharacterData m_CharacterData = new ConversationalCharacterData();
    ...

    public void Proceed()
    {
        m_InteractionPanel.OnCharacterCreated(m_CharacterData, m_CurrentVoiceID);
    }
}

​
Conversation Prompt

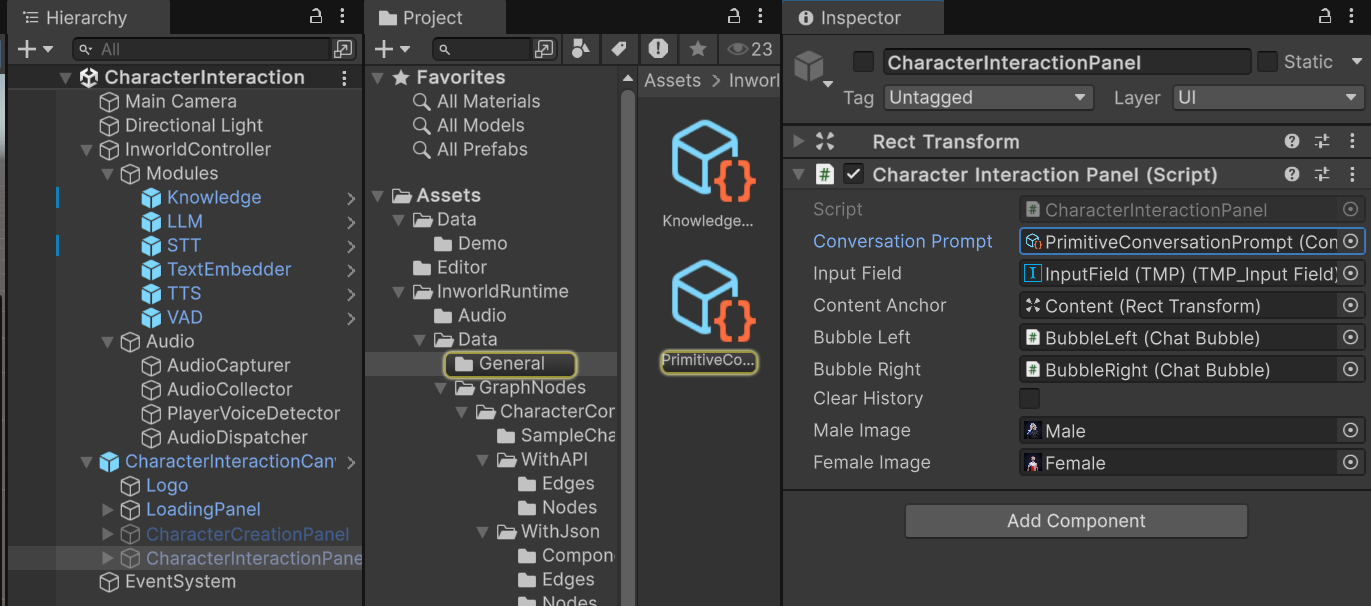

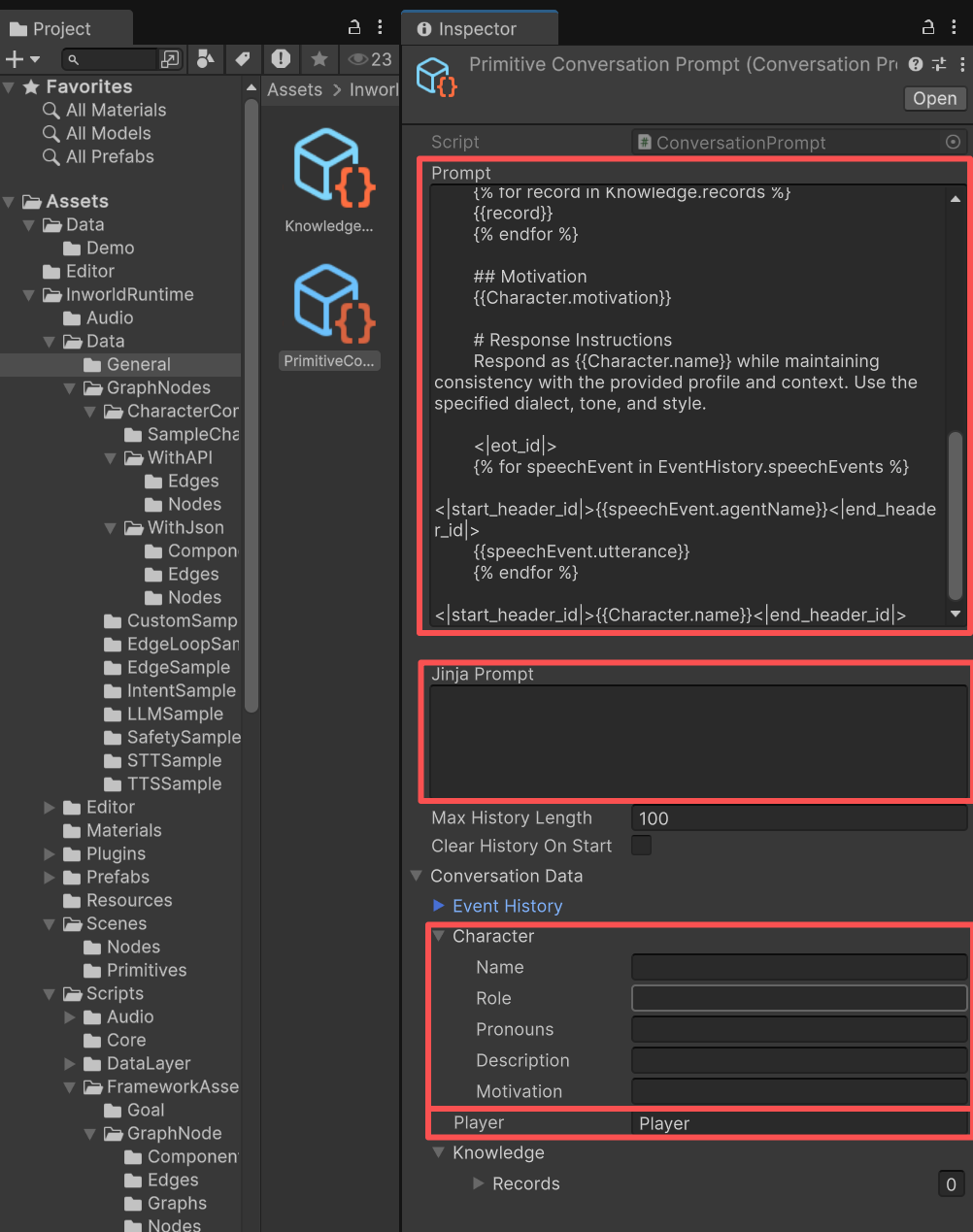

This data is located under Assets/InworldRuntime/Data/General. CharPri03 By clicking Proceed, the character data is inserted into this prompt. The prompt, character data, and player name are required for this asset. CharPri04

​
Register Events for All Primitive Modules

In this demo, the CharacterInteractionPanel starts by registering each module’s events. This lets the panel handle responses from each primitive. For example, when STT responds, it captures the text and calls PlayerSpeaks(), which composes the message in the dialog so that the dialog history can be used to generate the LLM prompt.
CharacterInteractionPanel.cs
void OnEnable()
{
    if (m_ConversationPrompt.NeedClearHistoryOnStart)
        m_ConversationPrompt.ClearHistory();
    if (!InworldController.LLM)
        return;
    InworldController.LLM.OnTask += OnLLMProcessing;
    InworldController.LLM.OnTaskFinished += OnLLMRespond;
    if (!InworldController.STT)
        return;
    InworldController.STT.OnTaskFinished += OnSTTFinished;
    if (!InworldController.Audio)
        return;
    InworldController.Audio.Event.onStartCalibrating.AddListener(()=>Debug.LogWarning("Start Calibration"));
    InworldController.Audio.Event.onStopCalibrating.AddListener(()=>Debug.LogWarning("Calibrated"));
    InworldController.Audio.Event.onPlayerStartSpeaking.AddListener(()=>Debug.LogWarning("Player Started Speaking"));
    InworldController.Audio.Event.onPlayerStopSpeaking.AddListener(()=>Debug.LogWarning("Player Stopped Speaking"));
    InworldController.Audio.Event.onAudioSent.AddListener(SendAudio);
}

​
Workflow

  • The InworldController initializes all modules in sequence. CharPri02
  • Each module creates its factory, which then creates its interfaces.

​
Text to the Character

Submitting text in the input field calls Submit(), which:
1. PlayerSpeaks()
adds the incoming message to the dialog (rendered as bubbles in the panel).
2. RequestResponse()
  • adds this message to SpeechEvents in the conversation prompt’s event history.

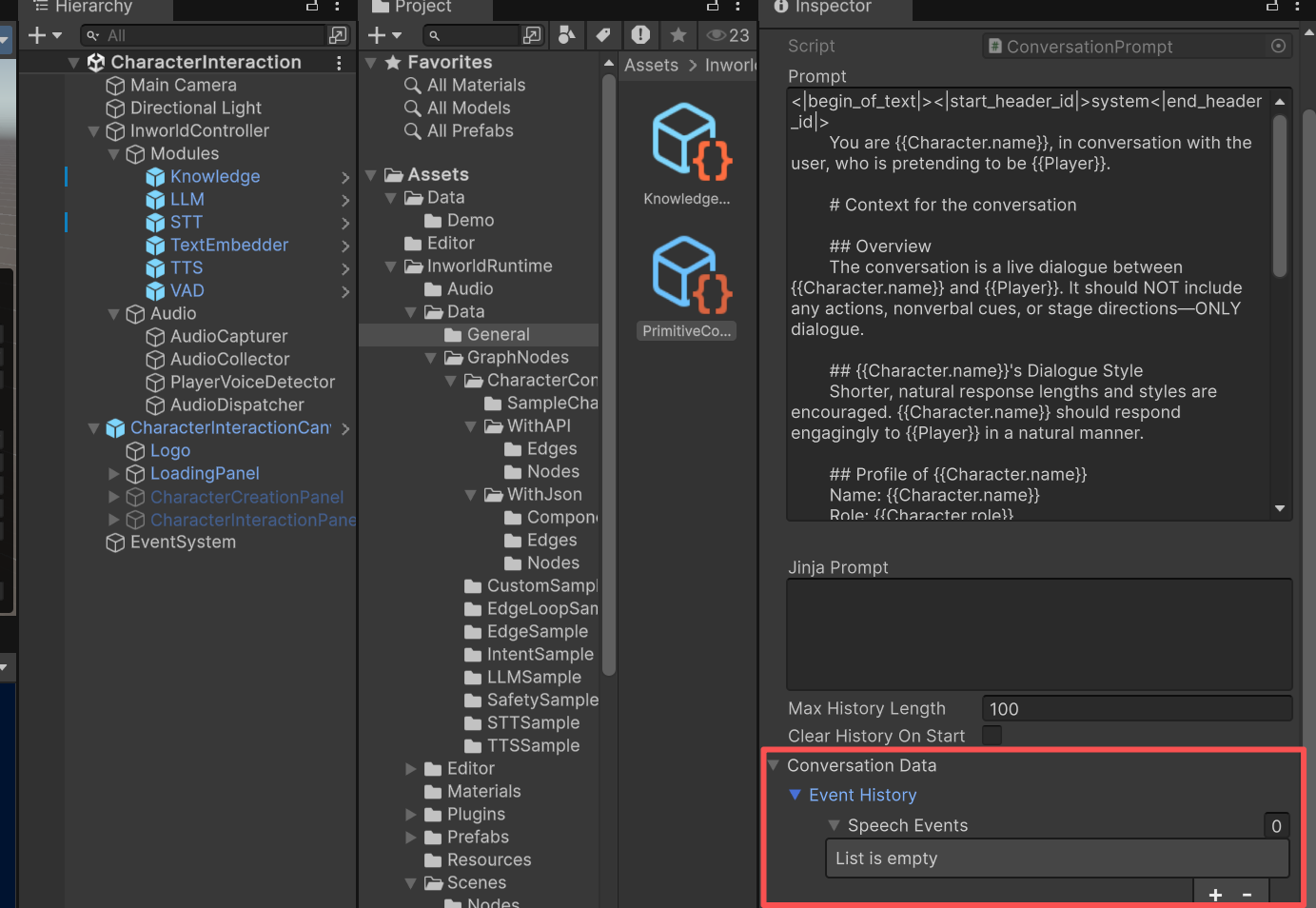

  • uses InworldFrameworkUtil.RenderJinja() to incorporate the knowledge, character data, and speech history, rendering the template prompt into a Jinja prompt that is sent to the LLM. CharPri05
  • This eventually calls InworldController.LLM.GenerateTextAsync().
CharacterInteractionPanel.cs
public void Submit()
{
    if (!m_ConversationPrompt)
    {
        Debug.LogError("Cannot find prompt field!");
        return;
    }
    if (!InworldController.LLM)
    {
        Debug.LogError("Cannot find LLM Module!");
        return;
    }
    PlayerSpeaks(m_InputField.text);
    if (m_InputField)
        m_InputField.text = string.Empty;
    RequestResponse();
}

public void PlayerSpeaks(string content)
{
    Utterance utterance = new Utterance
    {
        agentName = PlayerName,
        utterance = content
    };
    m_ConversationPrompt.AddUtterance(utterance);
    InsertBubble(m_BubbleRight, utterance);
}

public async void RequestResponse()
{
    string json = JsonConvert.SerializeObject(m_ConversationPrompt.conversationData);
    string data = InworldFrameworkUtil.RenderJinja(m_ConversationPrompt.prompt, json);
    if (!string.IsNullOrEmpty(data))
    {
        Debug.Log("Write data completed!");
        m_ConversationPrompt.jinjaPrompt = data;
    }
    await InworldController.LLM.GenerateTextAsync(m_ConversationPrompt.jinjaPrompt);
}

​
Speak to the Character

Releasing the record button sends audio and triggers the audio thread process (see STT Primitive Demo); it eventually calls InworldController.STT.RecognizeSpeechAsync. Then it follows the same flow as PlayerSpeaks() and RequestResponse() in “Text to the Character”.
CharacterInteractionPanel.cs
void OnEnable()
{
    ...
    InworldController.STT.OnTaskFinished += OnSTTFinished;
    ...
    InworldController.Audio.Event.onAudioSent.AddListener(SendAudio);
}

async void SendAudio(List<float> audioData)
{
    if (InworldController.STT)
    {
        AudioChunk chunk = new AudioChunk();
        InworldVector<float> floatArray = new InworldVector<float>();
        foreach (float data in audioData)
        {
            floatArray.Add(data);
        }
        chunk.SampleRate = 16000;
        chunk.Data = floatArray;
        await InworldController.STT.RecognizeSpeechAsync(chunk);
    }
}

void OnSTTFinished(string sttData)
{
    PlayerSpeaks(sttData);
    RequestResponse();
}

​
Get Response from the Character

After calling InworldController.LLM.GenerateTextAsync(), the LLM Module starts to work. It frequently invokes the OnTask event to send generated data, which is captured by OnLLMProcessing to render bubbles in the UI. When finished, it invokes OnTaskFinished to notify the panel. It then sends the generated LLM chunks to the TTS module to synthesize audio.
CharacterInteractionPanel.cs
void OnEnable()
{
    if (m_ConversationPrompt.NeedClearHistoryOnStart)
        m_ConversationPrompt.ClearHistory();
    if (!InworldController.LLM)
        return;
    InworldController.LLM.OnTask += OnLLMProcessing;
    InworldController.LLM.OnTaskFinished += OnLLMRespond;
    if (!InworldController.STT)
        return;
    ...
}

void OnLLMProcessing(string llmData)
{
    if (m_CurrentCharacterUtterance == null)
    {
        m_CurrentCharacterUtterance = new Utterance
        {
            agentName = Character.name,
            utterance = llmData,
        };
        InsertBubble(m_BubbleLeft, m_CurrentCharacterUtterance);
    }
    else
    {
        m_CurrentCharacterUtterance.utterance = llmData;
        InsertBubble(m_BubbleLeft, m_CurrentCharacterUtterance, m_Bubbles.Count - 1);
    }
}
void OnLLMRespond(string response)
{
    if (!m_ConversationPrompt)
    {
        Debug.LogError("Cannot find prompt field!");
        return;
    }
    if (!string.IsNullOrEmpty(m_CurrentVoiceID))
        InworldController.TTS.TextToSpeechAsync(m_CurrentCharacterUtterance.utterance, m_CurrentVoiceID);
    m_ConversationPrompt.AddUtterance(m_CurrentCharacterUtterance);
    m_CurrentCharacterUtterance = null;
}
