The Speech To Text (STT) template demonstrates how to perform STT using the STT primitive. This demo also uses a Voice Activity Detection (VAD) module to detect when the player is speaking.

​
Run the Template

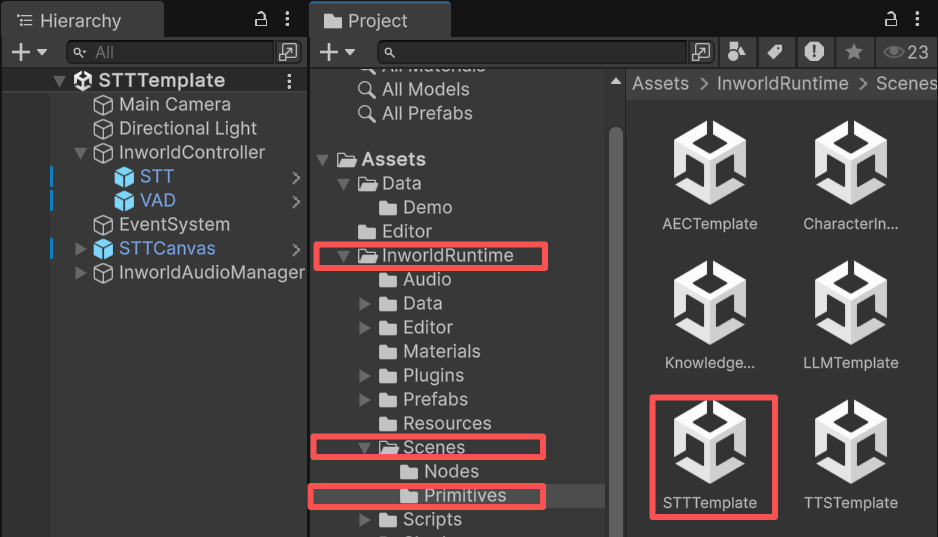

  1. Go to Assets/InworldRuntime/Scenes/Primitives and play the STTTemplate scene. STT00
  2. When the game starts, stay quiet for a moment to let the microphone calibrate to background noise.
  3. Once you see the Calibrated message, speak into the microphone.

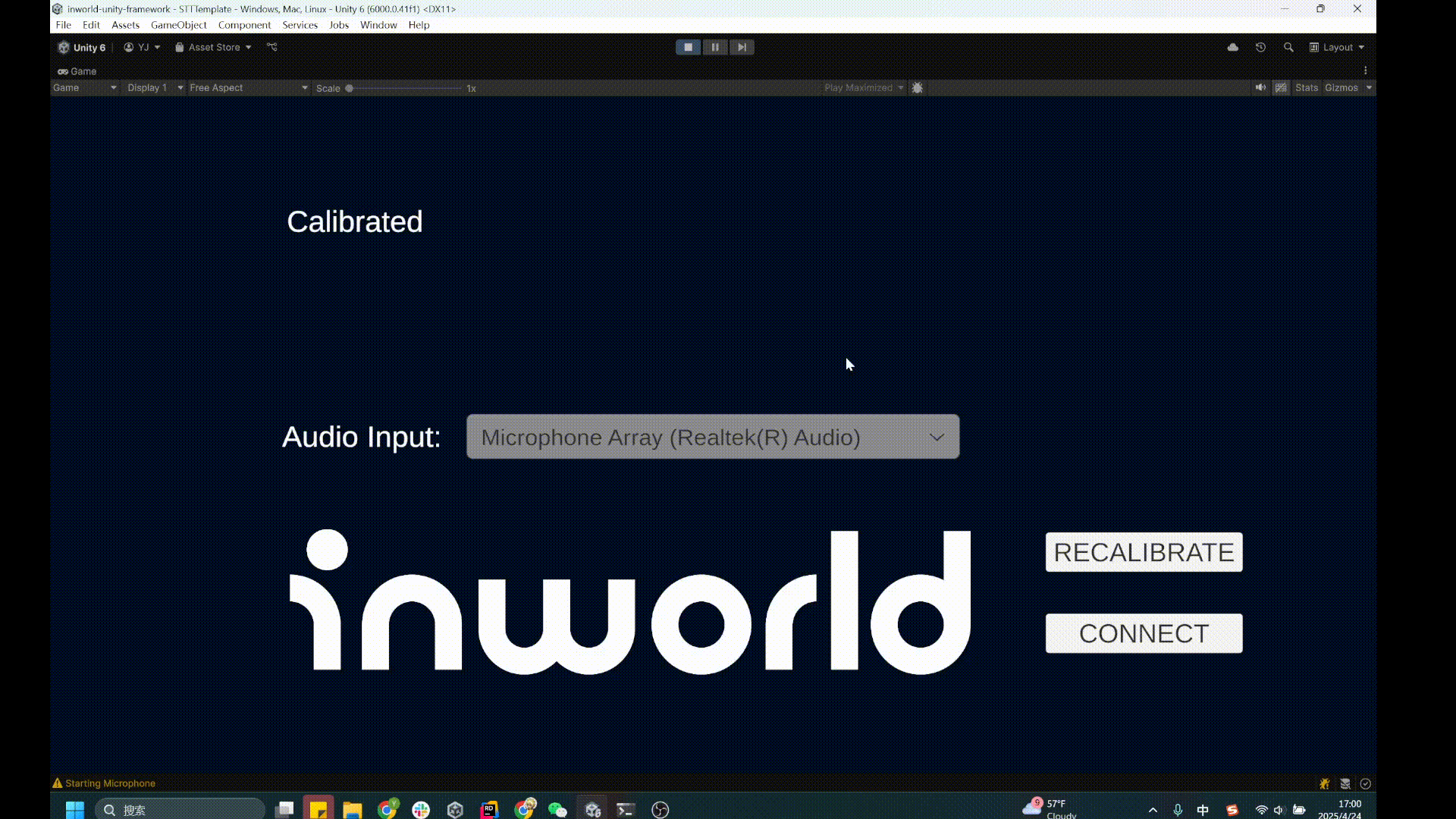

  4. You’ll see the transcribed text appear on screen. STT

​
Understanding the Template

​
Structure

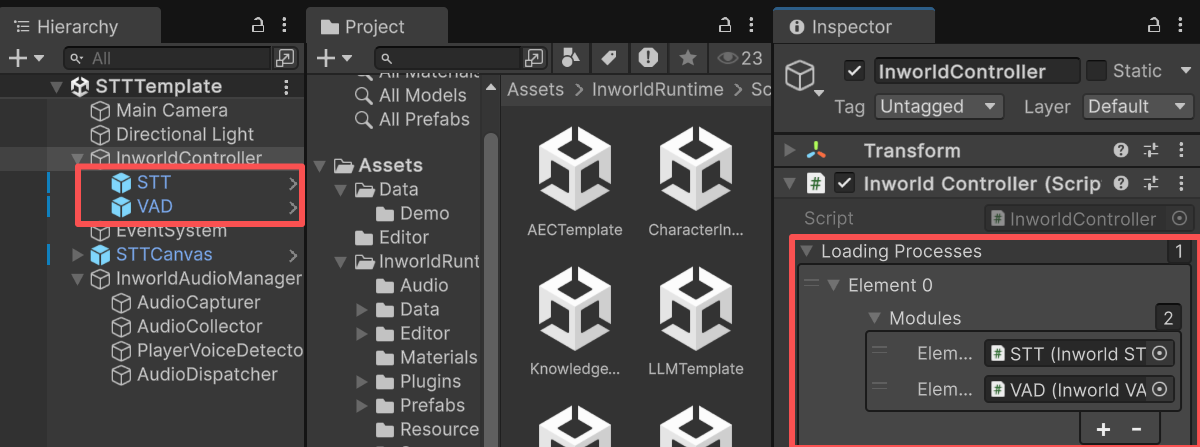

  • This demo has two prefabs under InworldController: STT (contains InworldSTTModule) and VAD (contains InworldVADModule).
  • When InworldController initializes, it calls InitializeAsync() on both modules (see Primitives Overview).
  • These functions create STTFactory and VADFactory, and each factory creates its STTInterface or VADInterface based on the current STT/VADConfig.
LLM01

​
InworldAudioManager

InworldAudioManager handles audio processing and is also modular. In this demo, it uses four components:
  • AudioCapturer: Manages microphone on/off and input devices. Uses Unity’s Microphone by default, and can be extended via third‑party plugins.
  • AudioCollector: Collects raw samples from the microphone.
  • PlayerVoiceDetector: Implements IPlayerAudioEventHandler and ICalibrateAudioHandler to emit player audio events and decide which timestamped segments to keep from the stream.
For example, TurnBasedVoiceDetector automatically pauses capture while the character is speaking to prevent echo.In this demo, VoiceActivityDetector extends PlayerVoiceDetector and leverages an AI model to accurately detect when the player is speaking.
  • AudioDispatcher: Sends the captured microphone data for downstream processing.
AudioManager

​
Workflow

Audio Thread:
At startup, the microphone calibrates to background noise. The VAD (Voice Activity Detection) module listens for speech, and when speech is detected, the AudioDispatcher streams audio frames to the STT module. Both partial and final transcriptions are produced and displayed in the UI. Since this section mainly covers STT, detailed explanations about audio capture will be described later. Main Thread:
In this demo’s STTCanvas, each audio-thread event is registered in the OnEnable method. Certain simple events, such as starting or stopping calibration, are handled directly (for example, updating on-screen text):
STTCanvas.cs
void OnEnable()
{
    if (!m_Audio)
        return;
    m_Audio.Event.onStartCalibrating.AddListener(() => Title("Calibrating"));
    m_Audio.Event.onStopCalibrating.AddListener(Calibrated);
    m_Audio.Event.onPlayerStartSpeaking.AddListener(() => Title("PlayerSpeaking"));
    m_Audio.Event.onPlayerStopSpeaking.AddListener(() =>
    {
        Title("");
        if (m_STTResult)
            m_STTResult.text = "";
    });
    m_Audio.Event.onAudioSent.AddListener((audioData) =>
    {
        AudioChunk chunk = new AudioChunk();
        InworldVector<float> floatArray = new InworldVector<float>();
        foreach (float data in audioData)
        {
            floatArray.Add(data);
        }
        chunk.SampleRate = 16000;
        chunk.Data = floatArray;
        _ = InworldController.STT.RecognizeSpeechAsync(chunk);
    });
    InworldController.Instance.OnFrameworkInitialized += OnFrameworkInitialized;
    InworldController.STT.OnTaskFinished += OnSpeechRecognized;
}
When the onAudioSent event is received, we assemble the audio data into an AudioChunk—the audio should be resampled to mono with a sample rate of 16,000 Hz—and call InworldController.STT.RecognizeSpeechAsync(). This function checks whether the STT module exists and has been initialized (i.e., the STTInterface is valid). If so, it directly calls sttInterface.RecognizeSpeech, returns the transcription string, and displays it on the STTCanvas.
InworldController.cs
public async Awaitable<string> RecognizeSpeechAsync(AudioChunk audioChunk)
{
    string result = "";
    if (!Initialized || !(m_Interface is STTInterface sttInterface))
        return result;
    m_SpeechRecognitionConfig ??= new SpeechRecognitionConfig();
    if (m_InputStream != null)
    {
        m_InputStream.Dispose();
        m_InputStream = null;
    }
    m_InputStream ??= sttInterface.RecognizeSpeech(audioChunk, m_SpeechRecognitionConfig);
    ...
