Multimodal Companion

• Speech-to-text (STT)- Voice input processing with VAD-based segmentation
• Multimodal image chat - Combined text and image understanding
• Text-to-speech (TTS) - Streaming audio response generation
• WebSocket communication - Real-time bidirectional data exchange
• Unity integration - Full client implementation for mobile/desktop

​

Overview

1. Node.js Server - Handles WebSocket connections, processes audio/text/image inputs, and manages graph executions
2. Unity Client - Provides the user interface for capturing audio, images, and displaying responses

• Convert speech-to-text using VAD for segmentation
• Process text and images through LLM models
• Generate speech responses via TTS
• Stream results back to the client in real-time

​

Prerequisites

• Node.js 18+ and TypeScript 5+
• Unity 2017+ (for full client experience)
• Inworld Runtime SDK v0.5 (installed automatically via package.json)

​

Run the Template

​

Option 1: Run the Node.js server with Test Pages

1. Clone the server repository
   bash

   Copy

   git clone https://github.com/inworld-ai/runtime-multimodal-companion-node
   cd runtime-multimodal-companion-node


2. In the root directory, copy .env-sample to .env and set the required values:
   .env

   Copy

      # INWORLD_API_KEY is required
      INWORLD_API_KEY=

      # ALLOW_TEST_CLIENT is optional, set to true to enable testing via web brower.
      ALLOW_TEST_CLIENT=

      # VAD_MODEL_PATH is optional, defaults to packaged https://github.com/snakers4/silero-vad
      VAD_MODEL_PATH=./silero_vad.onnx
      # LLM_MODEL_NAME is optional, defaults to `gpt-4o-mini`
      LLM_MODEL_NAME=
      # LLM_PROVIDER is optional, defaults to `openai`
      LLM_PROVIDER=
      # VOICE_ID is optional, defaults to `Dennis`
      VOICE_ID=
      # TTS_MODEL_ID is optional, defaults to `inworld-tts-1`
      TTS_MODEL_ID=
      # If enabled, it will be saved in system tmp folder.
      # Path will be printed in CLI on application start.
      # Default value is `false`, set `true` to enable this feature
      GRAPH_VISUALIZATION_ENABLED=


   • INWORLD_API_KEY: Your Base64 Runtime API key
   • VAD_MODEL_PATH: Path to your VAD model file (the repo includes the VAD model at silero_vad.onnx)
   • ALLOW_TEST_CLIENT: Must be true to enable test pages
3. Install and start the server:
   bash

   Copy

   yarn install
   yarn build
   yarn start


   You should see:
   Copy

   VAD client initialized
   STT Graph initialized
   Server running on http://localhost:3000
   WebSocket available at ws://localhost:3000/ws?key=<session_key>


4. Test the functionality:

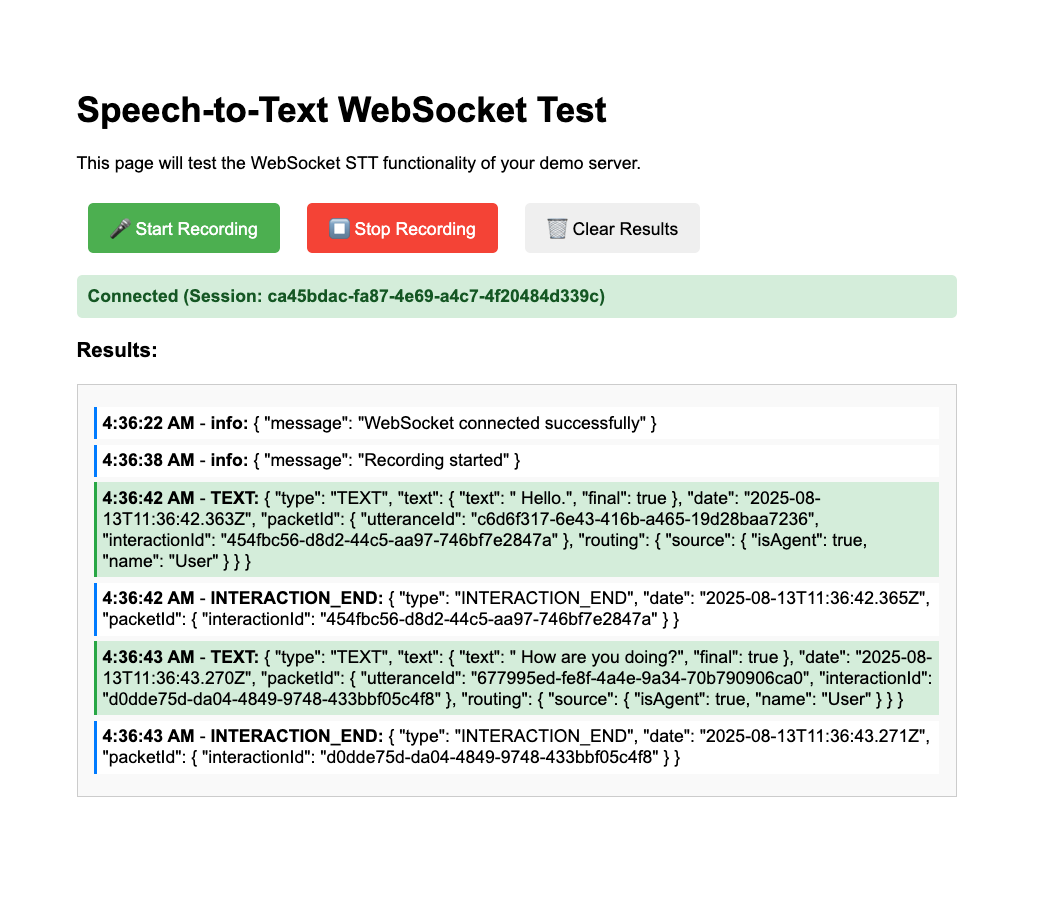

   • Audio interface: http://localhost:3000/test-audio

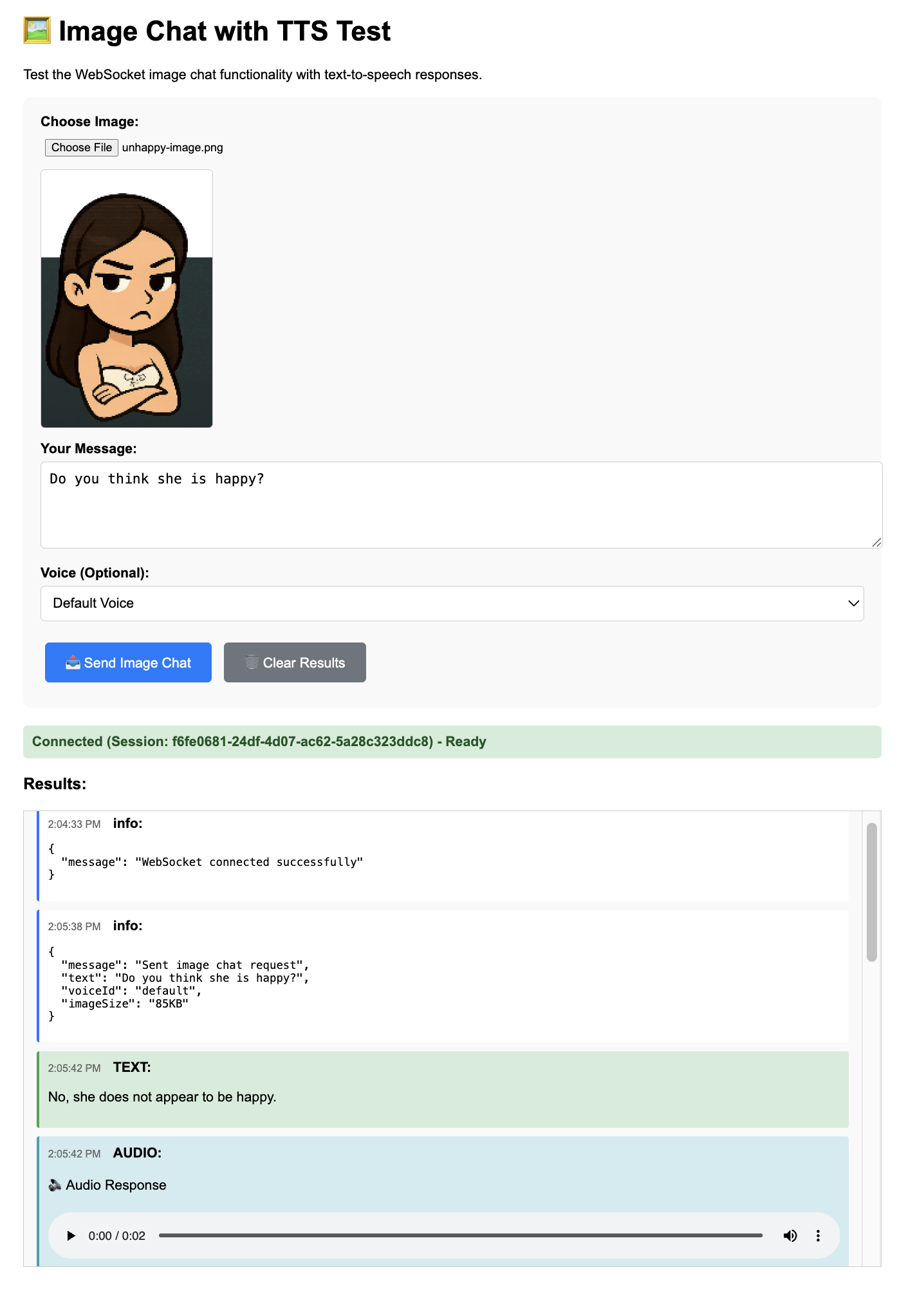

   • Multimodal interface: http://localhost:3000/test-image
   The test endpoints require ALLOW_TEST_CLIENT=true. Never enable this in production.

​

Option 2: Run the full application with Unity client

1. Set up your workspace
   Copy

   mkdir multimodal-companion-app
   cd multimodal-companion-app


2. Clone both the Node server repo and the Unity client repo.
   Copy

   # Server
   git clone https://github.com/inworld-ai/runtime-multimodal-companion-node

   # Unity client
   git clone https://github.com/inworld-ai/runtime-multimodal-companion-unity


3. Start the server: a. Navigate to runtime-multimodal-companion-node. b. Copy .env-sample to .env and set the required values:
   .env

   Copy

   # Required, Inworld Runtime Base64 API key
   INWORLD_API_KEY=<your_api_key_here>

   # Required, path to VAD model file
   VAD_MODEL_PATH=silero_vad.onnx

   # Optional, defaults to 3000
   PORT=3000

   # Enable test client endpoints for development
   ALLOW_TEST_CLIENT=false


   • INWORLD_API_KEY: Your Base64 Runtime API key
   • VAD_MODEL_PATH: Path to your VAD model file (the repo includes the VAD model at silero_vad.onnx)
   • ALLOW_TEST_CLIENT: Set to false to disable test pages (not needed with Unity client).
   c. Install and start the server:
   bash

   Copy

   yarn install
   yarn build
   yarn start

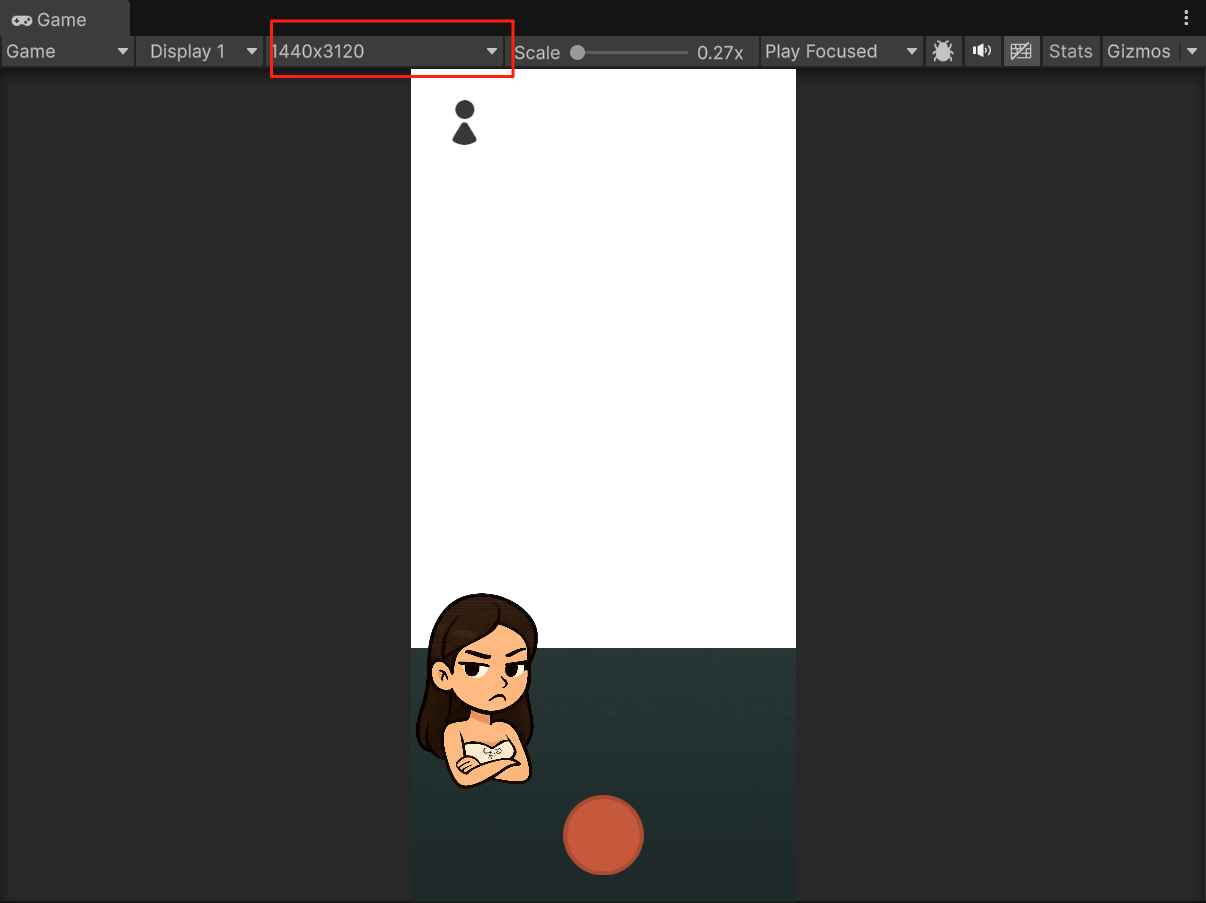

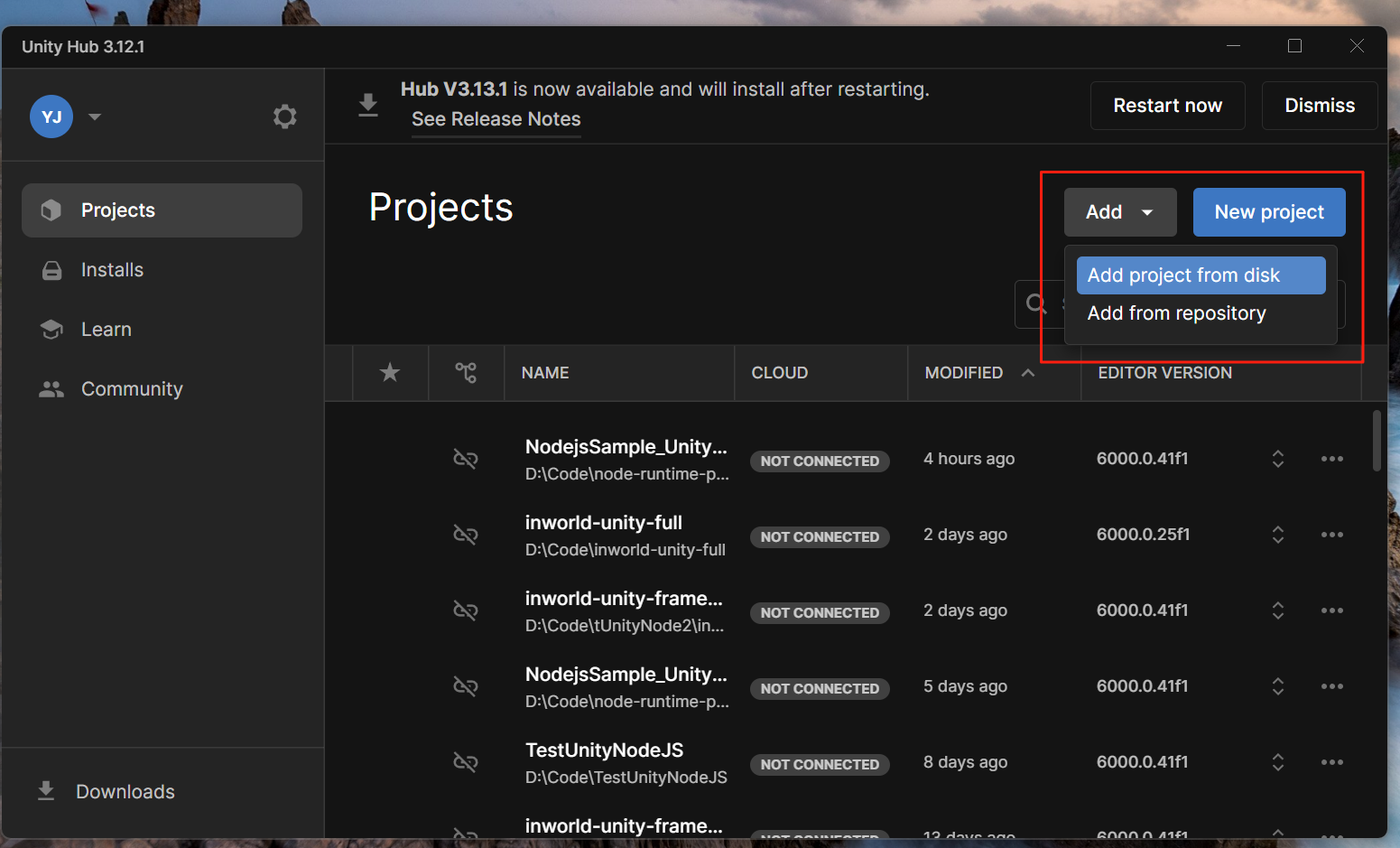

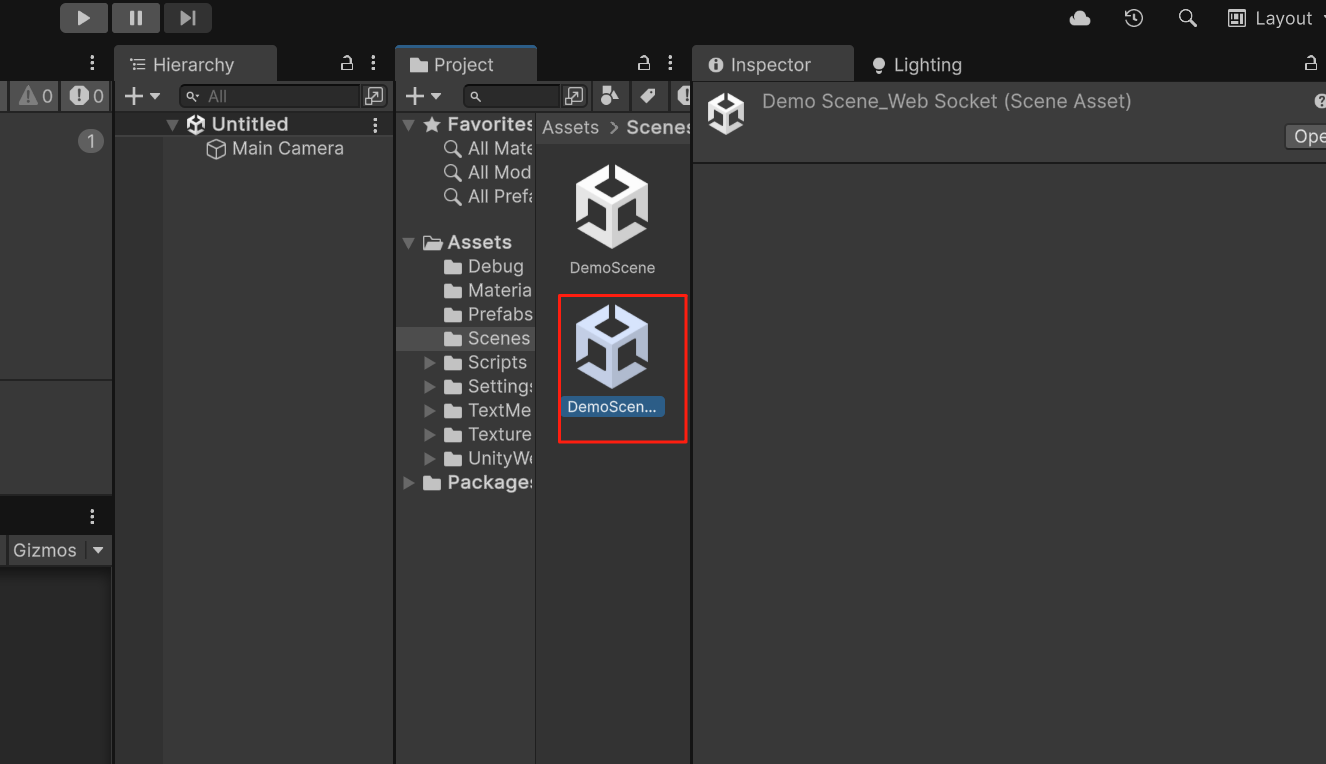

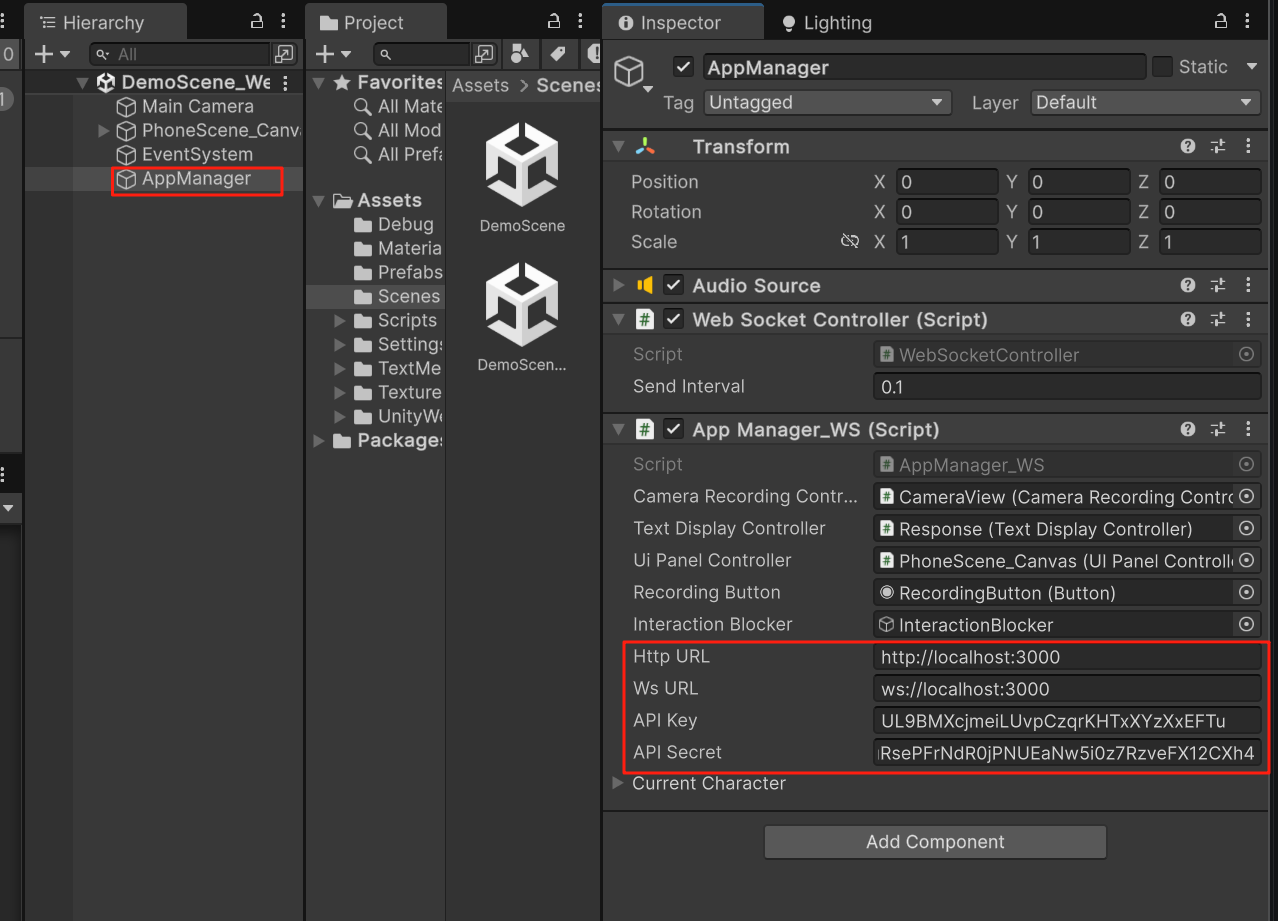

4. Now, configure the Unity client: a. Open Unity Hub and click Add → Add project from disk b. Select the runtime-multimodal-companion-unity folder c. Open the scene DemoScene_WebSocket d. Set Game view to 1440 x 3120 e. Select AppManager GameObject and configure AppManager_WS:
   • HTTP URL: http://localhost:3000
   • WebSocket URL: ws://localhost:3000

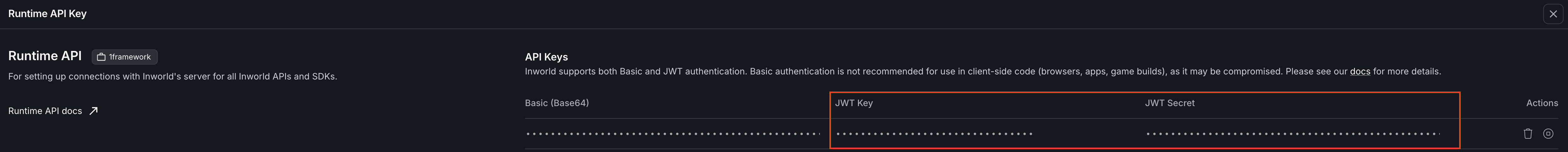

   • API Key and API Secret: Your Inworld JWT credentials (see Authentication)
5. Run the application
   • Click Play in Unity
   • Hold record button to capture audio, release to send
   • The app connects to your Node.js server for real-time interactions

​

Understanding the Template

​

Message Flow

1. Client Connection
   • Unity client authenticates and receives session token
   • WebSocket connection established with session key
2. Input Processing
   • Voice: Audio chunks → VAD → STT Graph → Text
   • Text: Direct text input → LLM processing
   • Image+Text: Combined multimodal input → LLM → TTS
3. Response Generation
   • Text responses streamed as they’re generated
   • Audio synthesized in chunks for low latency
   • All responses include interaction IDs for tracking

​

Core Components

​

1. Speech Processing Pipeline

// VAD processes incoming audio to detect speech boundaries
const vadResult = await this.vadClient.detectVoiceActivity(
  audioChunk,
  SPEECH_THRESHOLD
);

// When speech ends, trigger STT processing
if (speechDuration > MIN_SPEECH_DURATION_MS) {
  await this.processCapturedSpeech(key, interactionId);
}

​

2. Multimodal Processing

// Build pipeline: LLM -> TextChunking -> TTS
const graph = new GraphBuilder({ id: 'image-chat-tts', apiKey })
  .addNode(llmNode)        // Process text+image
  .addNode(textChunkingNode) // Chunk for streaming
  .addNode(ttsNode)        // Generate speech
  .addEdge(llmNode, textChunkingNode)
  .addEdge(textChunkingNode, ttsNode)
  .build();

​

3. Custom Nodes

class AudioFilterNode extends CustomNode {
  process(_context: ProcessContext, input: AudioInput): GraphTypes.Audio {
    return new GraphTypes.Audio({
      data: input.audio.data,
      sampleRate: input.audio.sampleRate,
    });
  }
}

​

4. WebSocket Protocol

• { type: "text", text: string }
• { type: "audio", audio: number[][] }
• { type: "audioSessionEnd" }
• { type: "imageChat", text: string, image: string, voiceId?: string }

• TEXT: { text: { text, final }, routing: { source } }
• AUDIO: { audio: { chunk: base64_wav } }
• INTERACTION_END: Signals completion
• ERROR: { error: string }

​

Graph Execution Strategy

1. STT Graph: Single shared executor for all connections (fast first token)
2. Image Chat Graph: Per-connection executor with voice-specific configuration
3. Queue Management: Serialized processing per connection to prevent conflicts

​

Error Handling

• gRPC Deadline Exceeded: Automatic retry once
• HTTP/2 GOAWAY: Rebuild executor on next use
• WebSocket Disconnection: Client auto-reconnect with backoff

​

Configuration Options

​

Model Providers

// OpenAI
{ provider: 'openai', modelName: 'gpt-4o-mini', stream: true }

// Google Gemini
{ provider: 'google', modelName: 'gemini-2.5-flash-lite', stream: true }

​

Text Generation Settings

• temperature: Output randomness (0-1)
• topP: Nucleus sampling threshold
• maxNewTokens: Response length limit
• Various penalties for repetition control

​

Audio Settings

• Input sample rate: 16 kHz (Unity microphone)
• VAD model: Silero ONNX
• Pause threshold: Configurable in PAUSE_DURATION_THRESHOLD_MS

​

Deployment Considerations

​

Production Setup

1. Disable test endpoints: ALLOW_TEST_CLIENT=false
2. Implement proper authentication for WebSocket connections
3. Use environment-specific configuration
4. Set appropriate concurrency limits (2-4 for basic plans)

​

Performance Optimization

• Reuse graph executors across requests
• Implement connection pooling
• Monitor memory usage with long-running executors
• Handle GOAWAY errors gracefully

​

Next Steps

• Extend with additional input modalities (video, documents)
• Implement conversation history and context management
• Add custom voice cloning or style transfer
• Integrate with external services and APIs
