This demo shows how an Edge works in the graph node system.

​
Run the Template

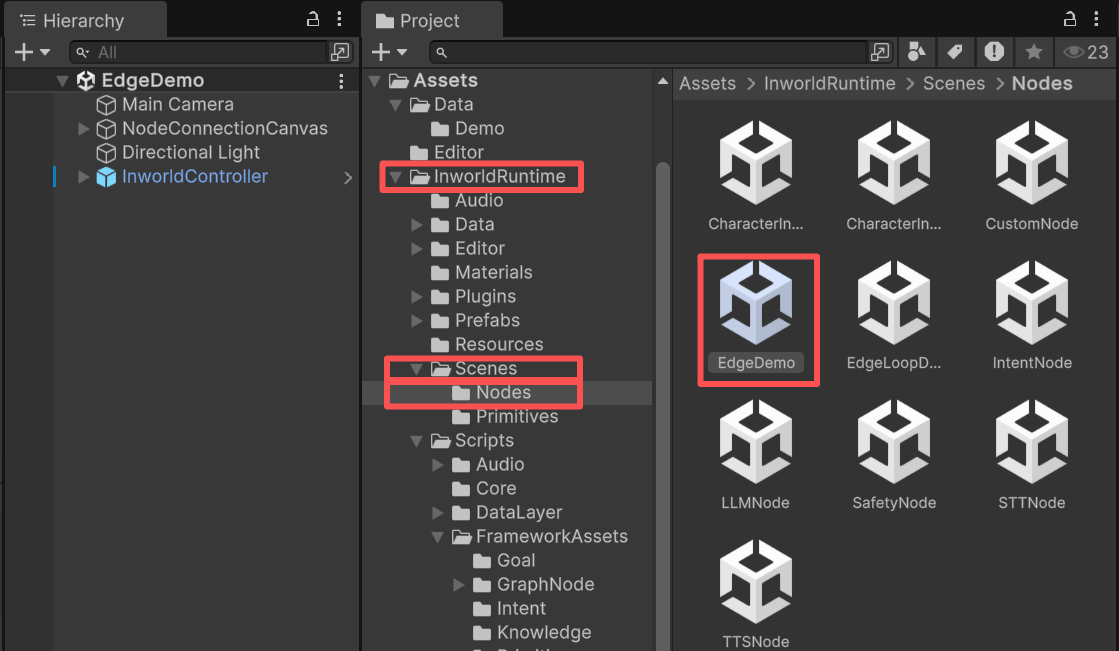

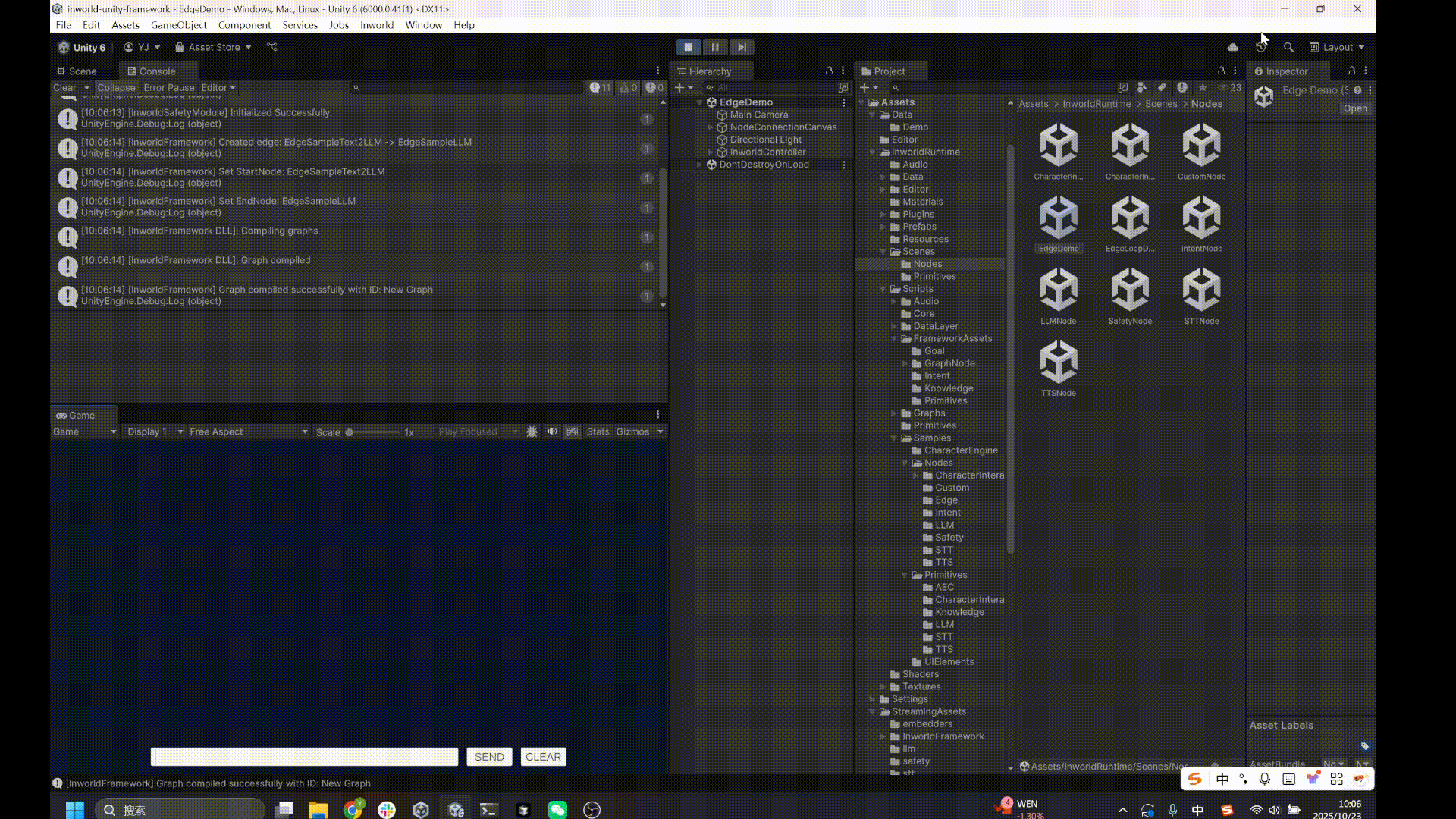

  1. Go to Assets/InworldRuntime/Scenes/Nodes and play the EdgeDemo scene. Edge00
  2. The overall experience is the same as in the LLM Node Demo. Type your text; the AI agent will respond.
Edge

​
Understanding the Graph

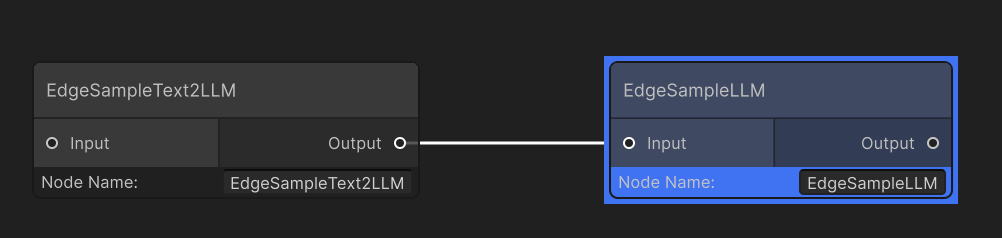

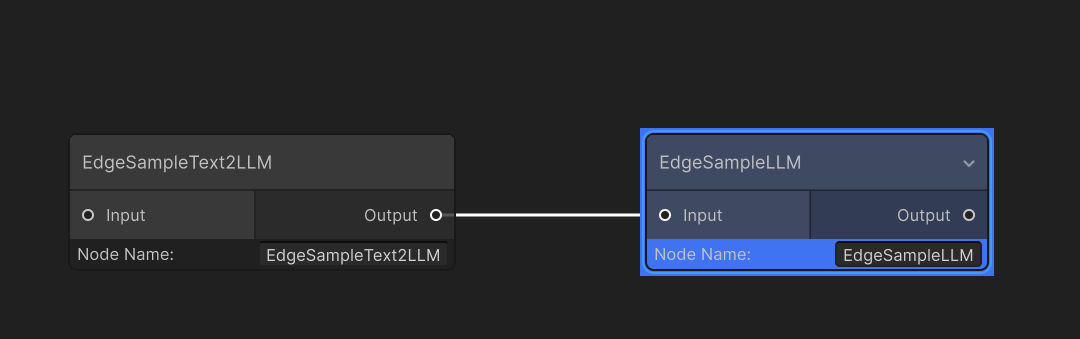

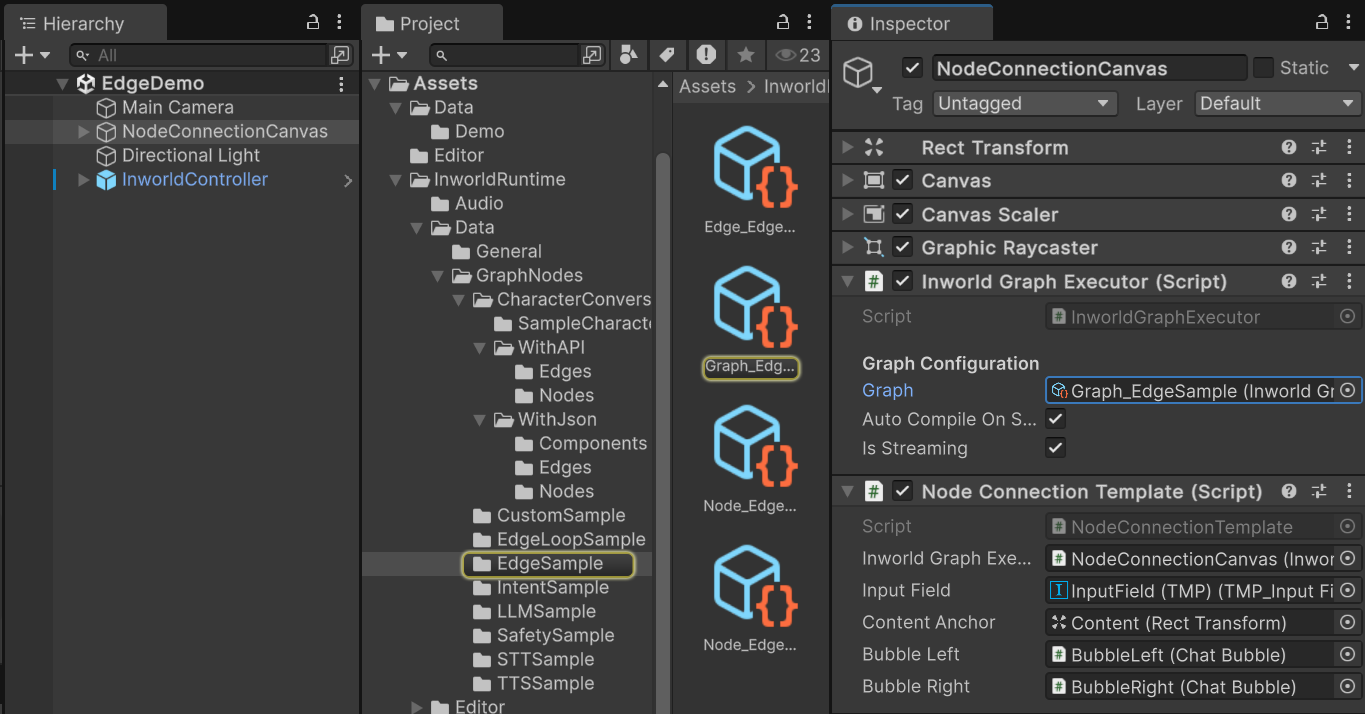

NodeConnectionCanvas contains an InworldGraphExecutor. EdgeNode01 The graph contains two nodes: a custom node TextToLLM and an LLMNode, connected by an edge Edge_SampleText_To_LLM. TextToLLM is the StartNode and LLMNode is the EndNode. EdgeNode01 You can also see this connection in the Graph Editor. EdgeNode01

​
CustomNode details

This node is a TxtToPromptSampleNodeAsset, implemented by inheriting from CustomNodeAsset. In its overridden ProcessBaseData(), it inspects the input InworldBaseData, wraps it into an LLMChatRequest (the type accepted by LLMNode), and sends it onward.
TxtToPromptSampleNodeAsset.cs
public class TxtToPromptSampleNodeAsset : CustomNodeAsset
{
    protected override InworldBaseData ProcessBaseData(InworldVector<InworldBaseData> inputs)
    {
        string strInput = "";
        if (inputs != null)
        {
            for (int i = 0; i < inputs.Size; i++)
            {
                InworldText text = new InworldText(inputs[i]);
                if (text.IsValid)
                {
                    strInput += text.Text;
                }
            }
        }
        InworldVector<InworldMessage> messages = new InworldVector<InworldMessage>();
        InworldMessage message = new InworldMessage();
        message.Role = Role.User;
        message.Content = strInput;
        messages.Add(message);
        return new LLMChatRequest(messages);
    }
}

​
Edge

This edge uses the default behavior: it simply forwards all output from the previous node to the next node.

​
InworldController

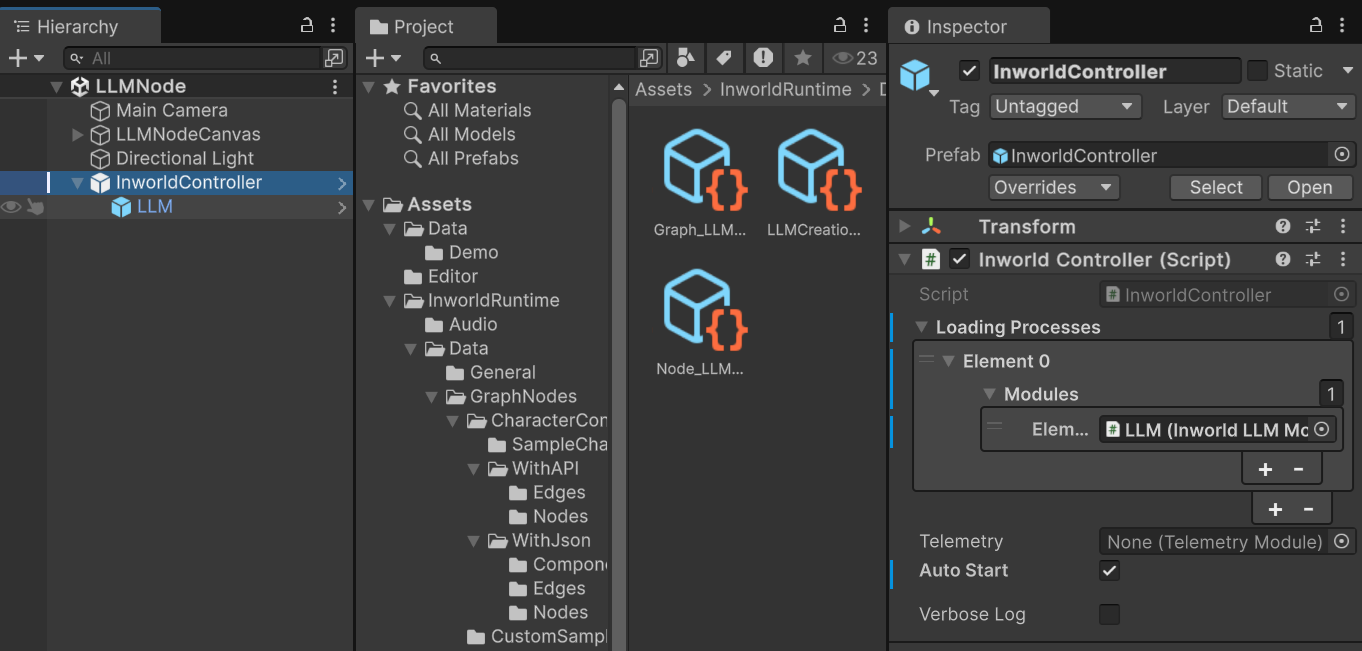

The InworldController is also simple; it contains only one primitive module: LLM. LLMNode04

​
Workflow

  1. When the game starts, InworldController initializes its only module, LLMModule, which creates the LLMInterface.
  2. Next, InworldGraphExecutor initializes its graph asset by calling each component’s CreateRuntime().
In this case, TextToPromptNode initializes immediately. When LLMNode.CreateRuntime() is called, it uses the created LLMInterface as input.
  1. After initialization, the graph calls Compile() and returns the executor handle.
  2. After compilation, the OnGraphCompiled event is invoked.
In this demo, NodeConnectionTemplate subscribes to it and enables the UI components. Users can then interact with the graph system.
CustomNodeAsset.cs
public override bool CreateRuntime(InworldGraphAsset graphAsset)
{
    m_Graph = graphAsset;
    m_Executor = new EdgeNodeProcessExecutor(ProcessBaseDataIO);
    Runtime = new EdgeNodeWrapper(NodeName, m_Executor);
    return Runtime?.IsValid ?? false;
}

protected virtual void ProcessBaseDataIO(IntPtr contextPtr)
{
    try
    {
        // Here is the virtual ProcessBaseData for override.
        EdgeNodeProcessExecutor.SetLastOutput(ProcessBaseData(EdgeNodeProcessExecutor.LastIntputs));
    }
    ...
}
NodeConnectionTemplate.cs
protected override void OnGraphCompiled(InworldGraphAsset obj)
{
    foreach (InworldUIElement element in m_UIElements)
        element.Interactable = true;

}
  1. After the UI is initialized, send the input text to the graph.
  2. Calling ExecuteGraphAsync() eventually produces a result and invokes OnGraphResult(), which NodeConnectionTemplate subscribes to in order to receive the data.
NodeConnectionTemplate.cs
protected override void OnGraphResult(InworldBaseData obj)
{
    LLMChatResponse response = new LLMChatResponse(obj);
    Debug.Log(obj);
    if (response.IsValid && response.Content != null && response.Content.IsValid)
    {
        string message = response.Content.ToString();
        InsertBubble(m_BubbleLeft, Role.Assistant.ToString(), message);
    }
}
