This demo showcases how to create your CustomNode and make your own implementations.

​
Run the Template

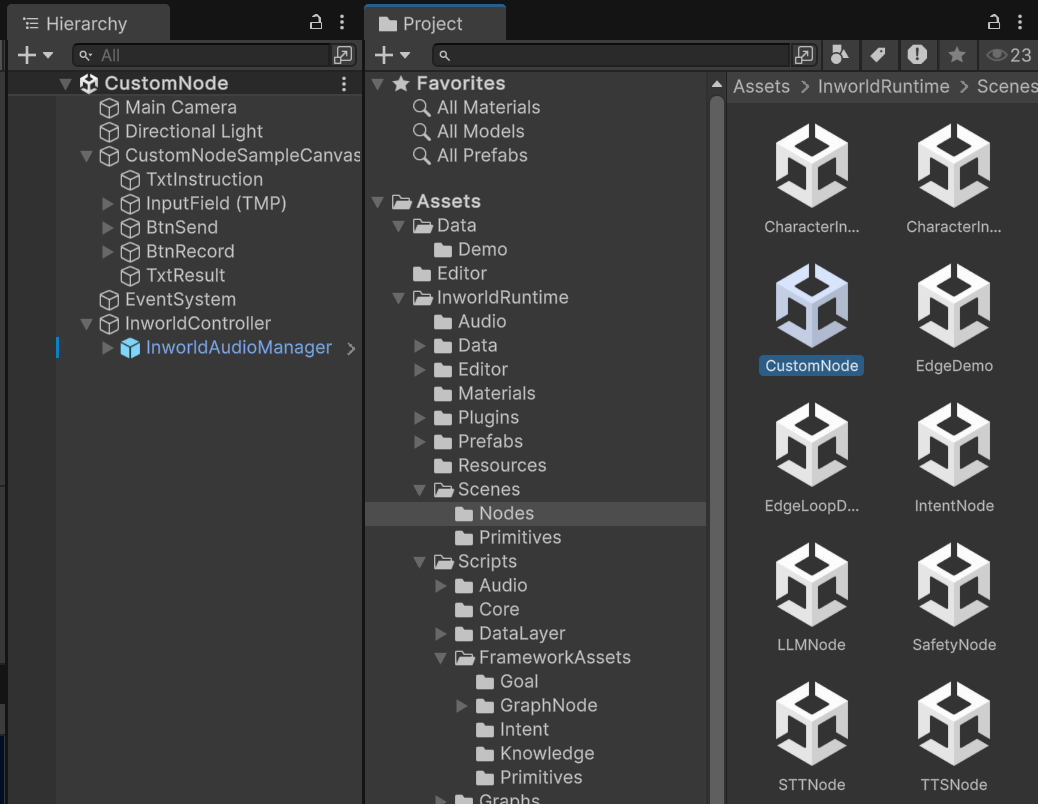

  1. Go to Assets/InworldRuntime/Scenes/Nodes and play the CustomNode scene. CustomNode00
  2. Once the graph is compiled, you can either enter text or input audio by hold the record button and release the button to send the audio.
  3. In this node, if you are sending text, it will make your input text uppercase.
  4. If you send the audio, it will make the pitch higher.

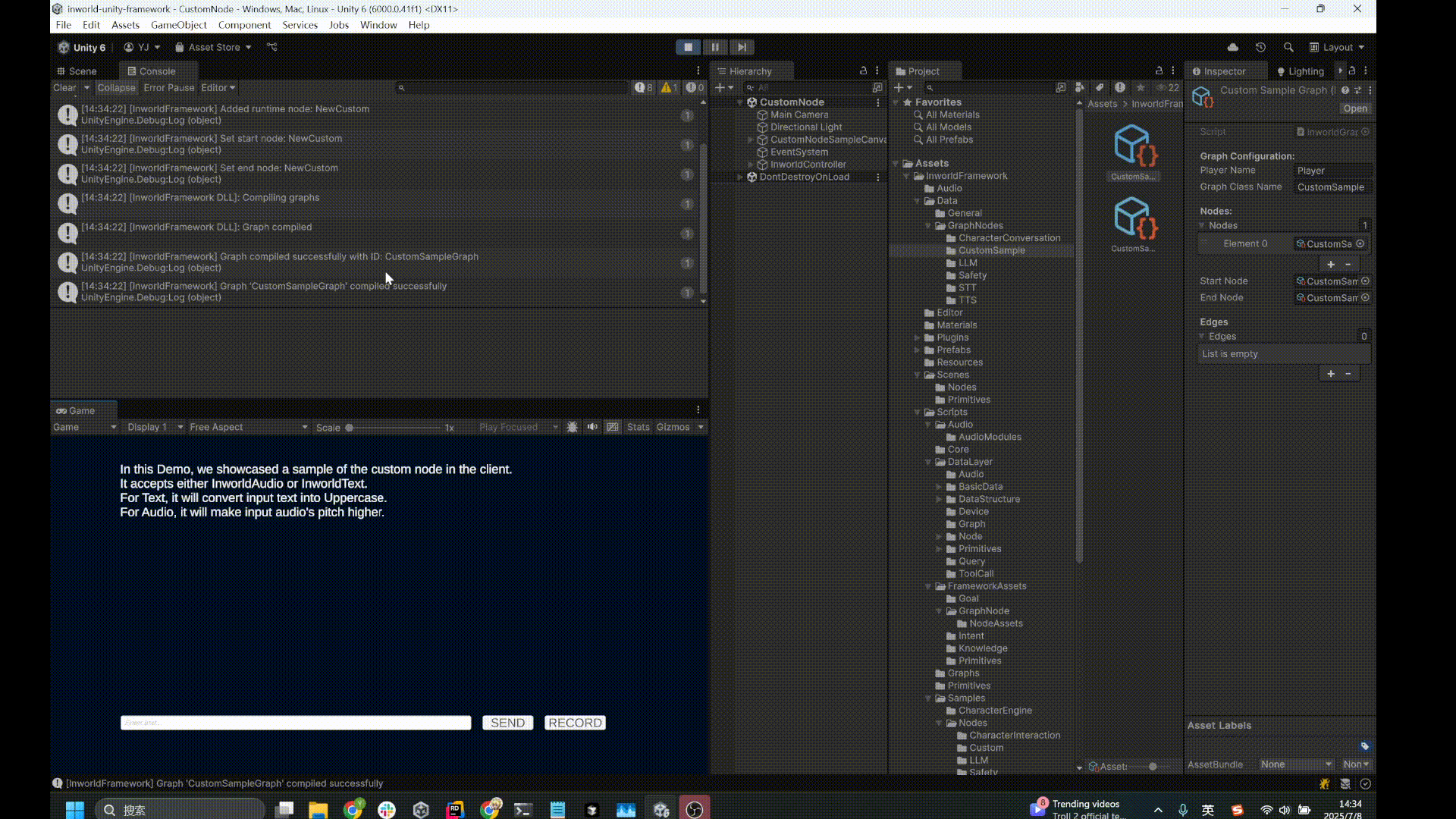

Custom

​
Understanding the Graph

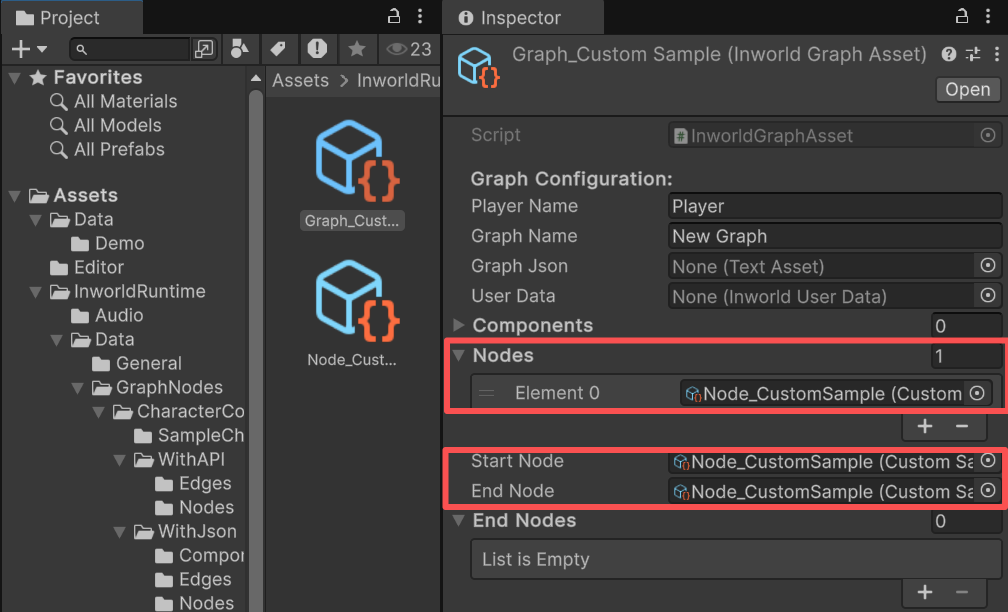

CustomNodeSampleCanvas contains an InworldGraphExecutor whose graph asset includes only a single CustomSample. The graph is very simple. It contains a single node, CustomSampleNode, with no edges. CustomSampleNode is both the StartNode and the EndNode. CustomNode02

​
CustomNode details

The node is using CustomSampleNode, which is written and inherited from the CustomNodeAsset. In its overrided ProcessBaseData(), it checks the input InworldBaseData, and process that data based on its type.
CustomSampleNodeAsset.cs
public class CustomSampleNodeAsset : CustomNodeAsset
{
    protected override InworldBaseData ProcessBaseData(InworldVector<InworldBaseData> inputs)
    {
        if (inputs.Size == 0)
        {
            return new InworldError("No input data", StatusCode.DataLoss);
        }
        InworldBaseData inputData = inputs[0]; // YAN: Let's only process the last single input.
        InworldText textResult = new InworldText(inputData);
        if (textResult.IsValid)
            return ProcessTextData(textResult);

        InworldAudio audioResult = new InworldAudio(inputData);
        if (audioResult.IsValid)
            return ProcessAudioData(audioResult);

        return new InworldError($"Unsupported data type: {inputData.GetType()}", StatusCode.Unimplemented);
    }
    ...
}

​
InworldAudioManager

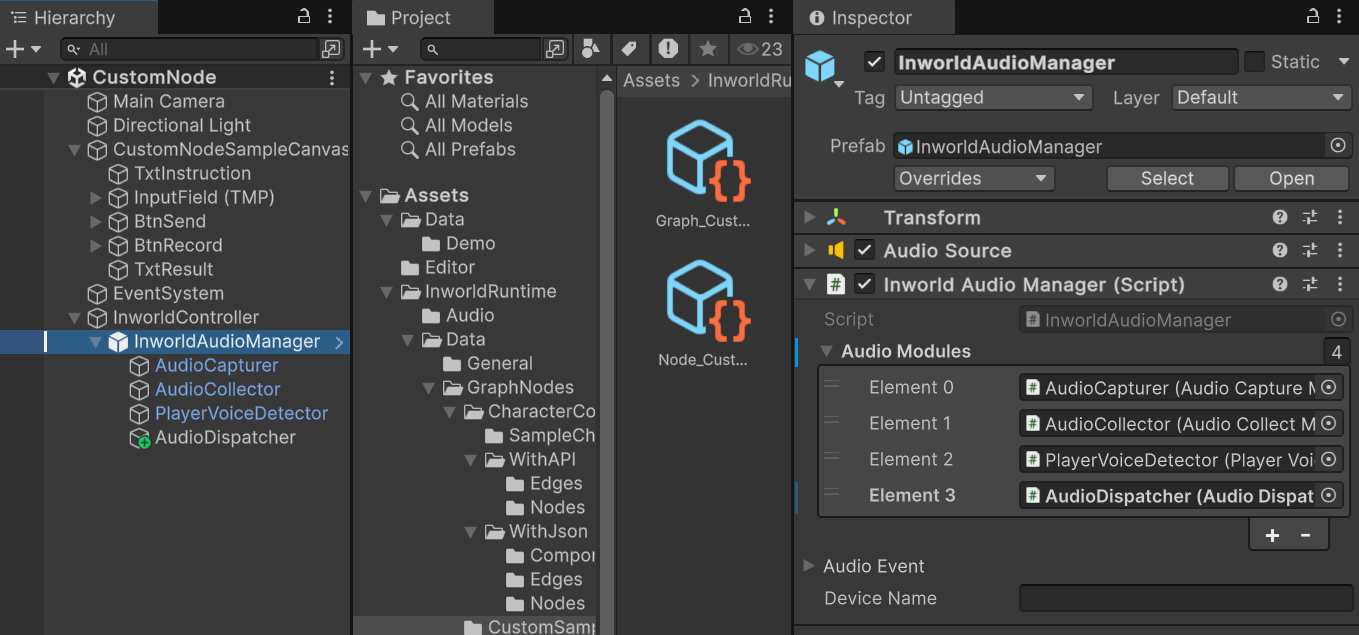

In this demo, the InworldController does not include any primitive modules. It includes an InworldAudioManager for sampling the microphone input. InworldAudioManager handles audio processing and is also modular. In this demo, it uses four components:
  • AudioCapturer: Manages microphone on/off and input devices. Uses Unity’s Microphone by default, and can be extended via third‑party plugins.
  • AudioCollector: Collects raw samples from the microphone.
  • PlayerVoiceDetector: Implements IPlayerAudioEventHandler and ICalibrateAudioHandler to emit player audio events and decide which timestamped segments to keep from the stream.
  • AudioDispatcher: Sends the captured microphone data for downstream processing.
CustomNode03

​
Workflow

  1. When the game starts, InworldController initalized immediately and invoke OnFrameworkInitialized event as there is no primitive modules.
  2. Then InworldGraphExecutor initializes its graph asset by calling each component’s CreateRuntime().
In this case, CustomNode’s CreateRuntime() is called. It’s in its parent class.
CustomNodeAsset.cs
public override bool CreateRuntime(InworldGraphAsset graphAsset)
{
    m_Graph = graphAsset;
    m_Executor = new CustomNodeProcessExecutor(ProcessBaseDataIO);
    Runtime = new CustomNodeWrapper(NodeName, m_Executor);
    return Runtime?.IsValid ?? false;
}

protected virtual void ProcessBaseDataIO(IntPtr contextPtr)
{
    try
    {
        // Here is the virtual ProcessBaseData for override.
        CustomNodeProcessExecutor.SetLastOutput(ProcessBaseData(CustomNodeProcessExecutor.LastIntputs));
    }
    ...
}
  1. After compilation, the OnGraphCompiled event is invoked.
In this demo, CustomNodeTemplate subscribes to it and enables the UI components. Users can then interact with the graph system.
CustomNodeTemplate.cs
protected override void OnGraphCompiled(InworldGraphAsset obj)
{
    foreach (InworldUIElement element in m_UIElements)
        element.Interactable = true;

}
  1. After the UI is initialized, send the input text or audio to the graph.
  2. Calling ExecuteGraphAsync() eventually produces a result and invokes OnGraphResult(), which CustomNodeTemplate subscribes to in order to receive the data.
CustomNodeTemplate.cs
protected override void OnGraphResult(InworldBaseData obj)
{
    InworldText text = new InworldText(obj);
    if (text.IsValid)
    {
        m_ResultText.text = "Result: " + text.Text;
        return;
    }
    InworldAudio inworldAudio = new InworldAudio(obj);
    if (!inworldAudio.IsValid)
        return;
    m_AudioSource.clip = inworldAudio.AudioClip;
    m_AudioSource.Play();
}
